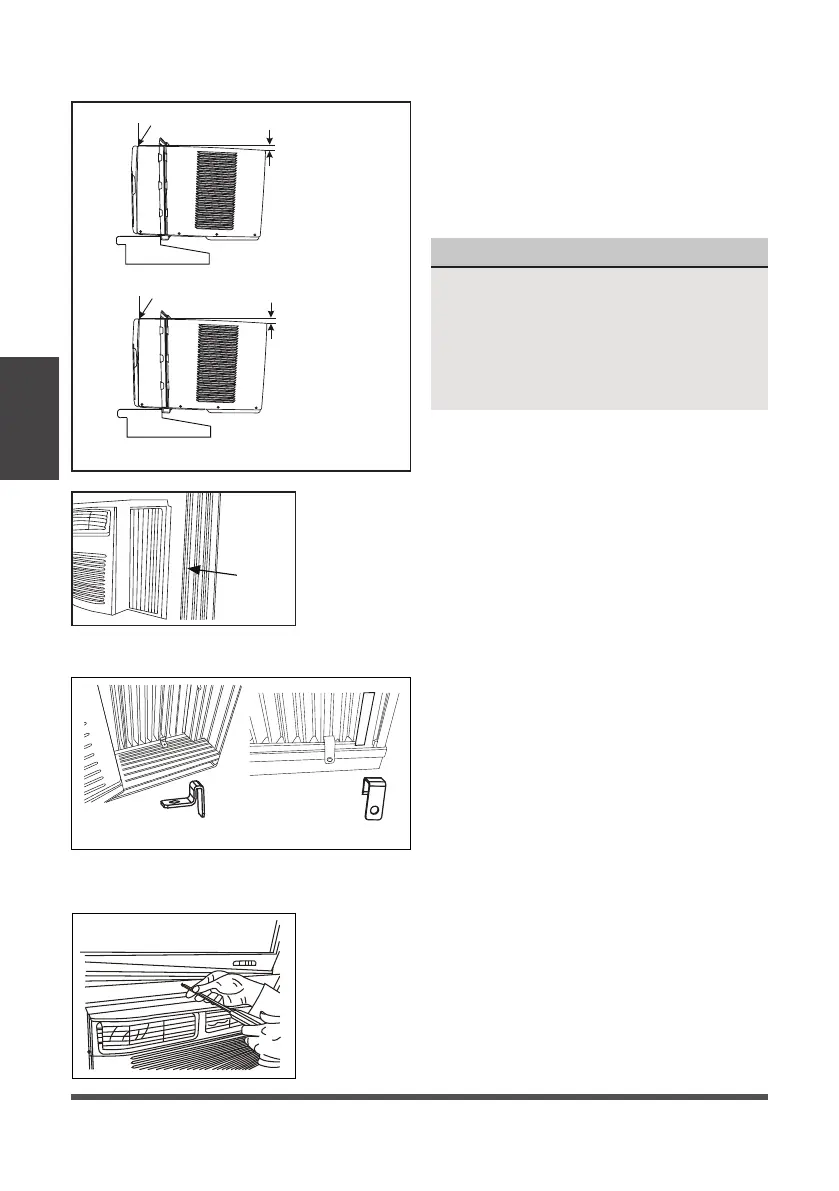

4. INSTALL AIR CONDITIONER
Measure from the cabinet edge
Measure from the cabinet edge
H: About 3/4" to 1"
(for 5K to 6K)
H: About 3/4" to 1"
(for 5K to 6K)
H
H
INSIDE
INSIDE
OUTSIDE
OUTSIDE
Wooden Windows
Vinyl-Clad Windows
Fig. 5
2. While keeping a firm grip on the air
conditioner, carefully place the unit into
the window opening so the bottom of
the air conditioner frame is against the
window sill (Fig. 5). Carefully close the
window behind the top rail of the unit.
NOTICE
Check that air conditioner is tilted back
per dimension H (Fig. 5) (tilted about 3°
to 4° downward to the outside). After
proper installation, condensate should
not drain from the overflow drain hole
during normal use. Adjust the slope if
otherwise.
window
frame
Fig. 6
3. Extend the side panels out against the window
frame (Fig. 6).
5. SECURE AIR CONDITIONER
Fig. 7A Fig. 7B
A. Place the frame lock between the
frame extensions and the window
sill as shown (Fig. 7A for Wooden
windows), (Fig. 7B for Vinyl-Clad
windows).
Drive 3/4” (19 mm) or 1/2” (12.7 mm)
locking screws through the frame lock
and into the sill.
NOTE: To prevent window sill from
splitting, drill 1/8” (3 mm) pilot holes
before driving screws.
Fig. 8A
B1: For wooden windows:
Drive 1/2” (12.7 mm) locking screws through the
frame lock and into the sill (Fig. 8A).
NOTE: To prevent window sill from splitting, drill 1/8”
(3mm) pilot holes before driving screws. Drive 1/2”
(12.7mm) locking screws through frame holes into
window sash (Fig. 8B/8C).
To Next Page
