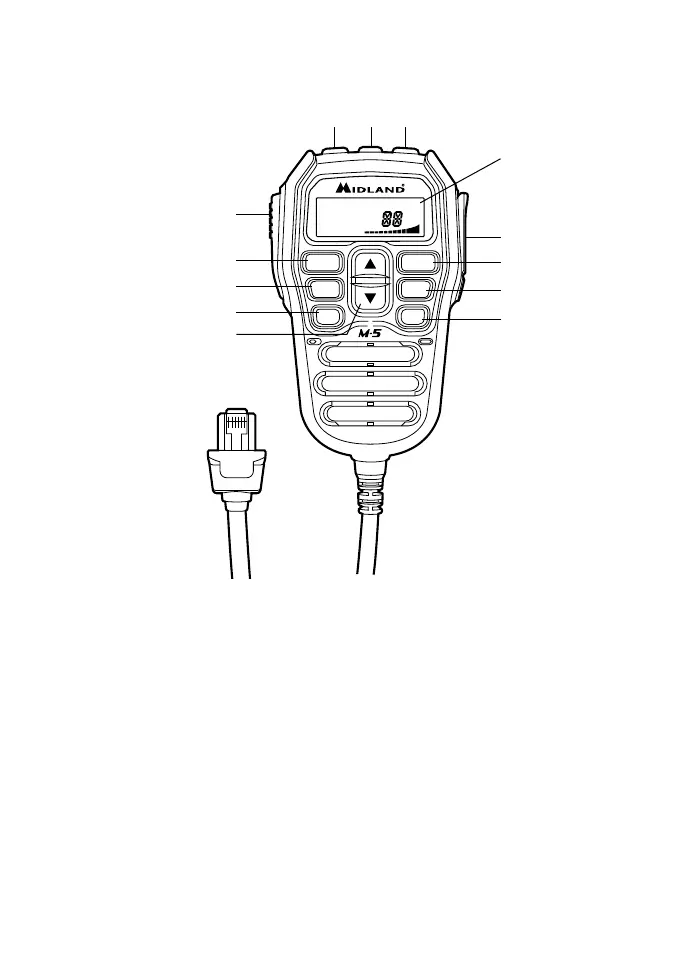

4 | M-5 Instruction Guide
Microphone
6. LCD display
7. MIC/SPK Kenwood jack: socket for the connection to an external accessory,
such as headsets, earphone/mikes, etc.
8. RFG: press to activate RF GAIN
9. EMG: button suitable for the emergency channels (9/19) activation. Press
once to select channel 9, push it again for the immediate selection of channel
19.
10. UP/DOWN: Push UP or DOWN to select the desired channel.
11. F button: function and multi-function control. Shortly press twice to lock/
unlock the keypad. Press F + DOWN to activate / deactivate the speaker of
the microphone. Press F + A/F to select the desired frequency band; with the
UP/DOWN buttons you can select the desired band; choose amongst the
following ones available: CE – EU – IN – DE – I2 – I0 – PL - UK. Then push
PTT for confirmation.
