Technical Information
10
CVA 610/CVA 615 Coffee Systems
1.3 Component Layouts
1.3.1 CVA 610

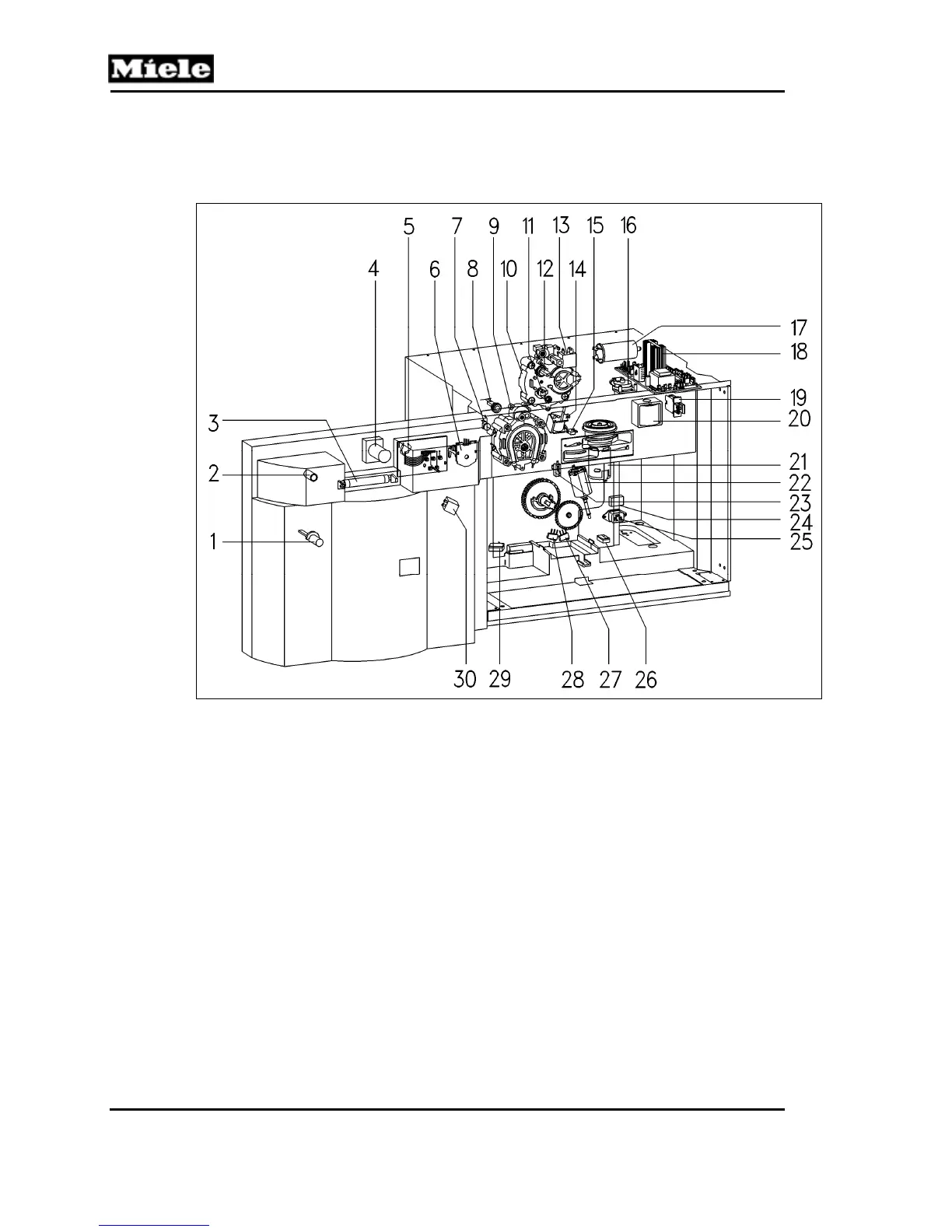

Figure 1-5: CVA 610 Component Layout
1
Steam valve switch
16
Flow meter
2
Door magnet
17
Interference suppression capacitor
3
Fluorescent bulb
18
CPU electronic
4
Starter
19
Door interlock switch
5
Control panel/display electronic
20
Water pump
6
Selector switch
21
Grinder
7
Thermostat
22
Brew unit drive
8
PTC temperature sensor
23
Brew unit present switch
9
Heater (coffee & water)
24
Water tank level switch
10
Heater (steam)
25
Connection socket
11
Thermostat
26
Overflow float switch
12
PTC temperature sensor
27
Brew unit home switch
13
Steam solenoid
28
Brew unit brew position switch
14
Dispenser solenoid
29
Waste container present switch
15
Dispenser switch
30 Hot-water valve
