At a maximum distance of 415 mm
from the ceiling hold retaining plate C
against the wall and use the notches
to align it with the middle line. Mark
the two drill holes.
^
Drill two C 8 mm holes into the wall,
and press the S8 plugs into the holes.
^
Screw on retaining plate C with two
5 x 40 mm screws.
Canopy
^
Before fitting the canopy the glass
cover of the lighting tube must first
be removed (see relevant section in
"Cleaning and care").
^

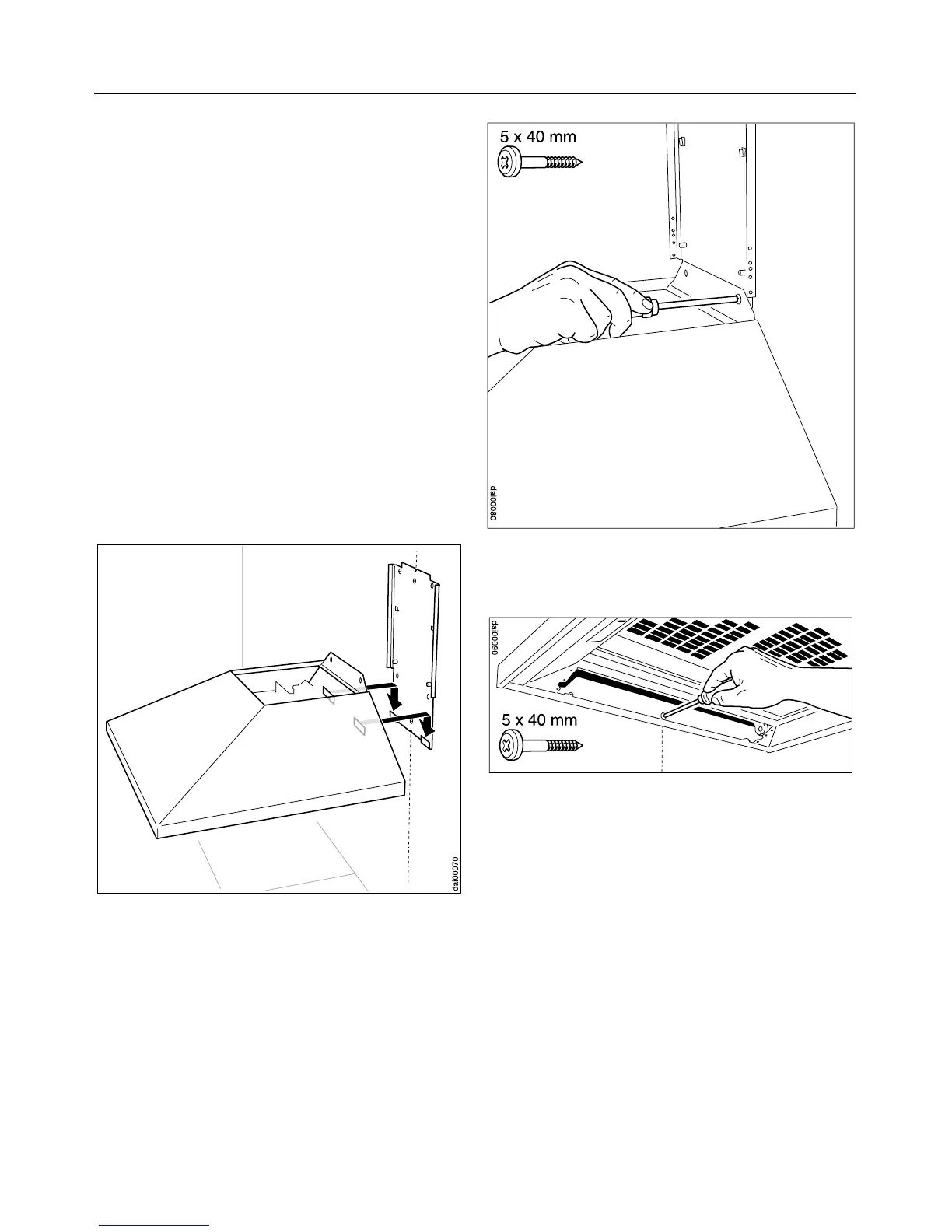

Hang the canopy on the angle brack
-
ets on retaining plate A.
^ Secure the canopy with 5 x 40 mm
screws into each drilled hole.
^
DA 196-2:
Secure the canopy with a 5 x 40 mm
screw.
^
DA 199-2:
Secure the canopy with two5x40mm
screws.
^
Replace the glass cover.
