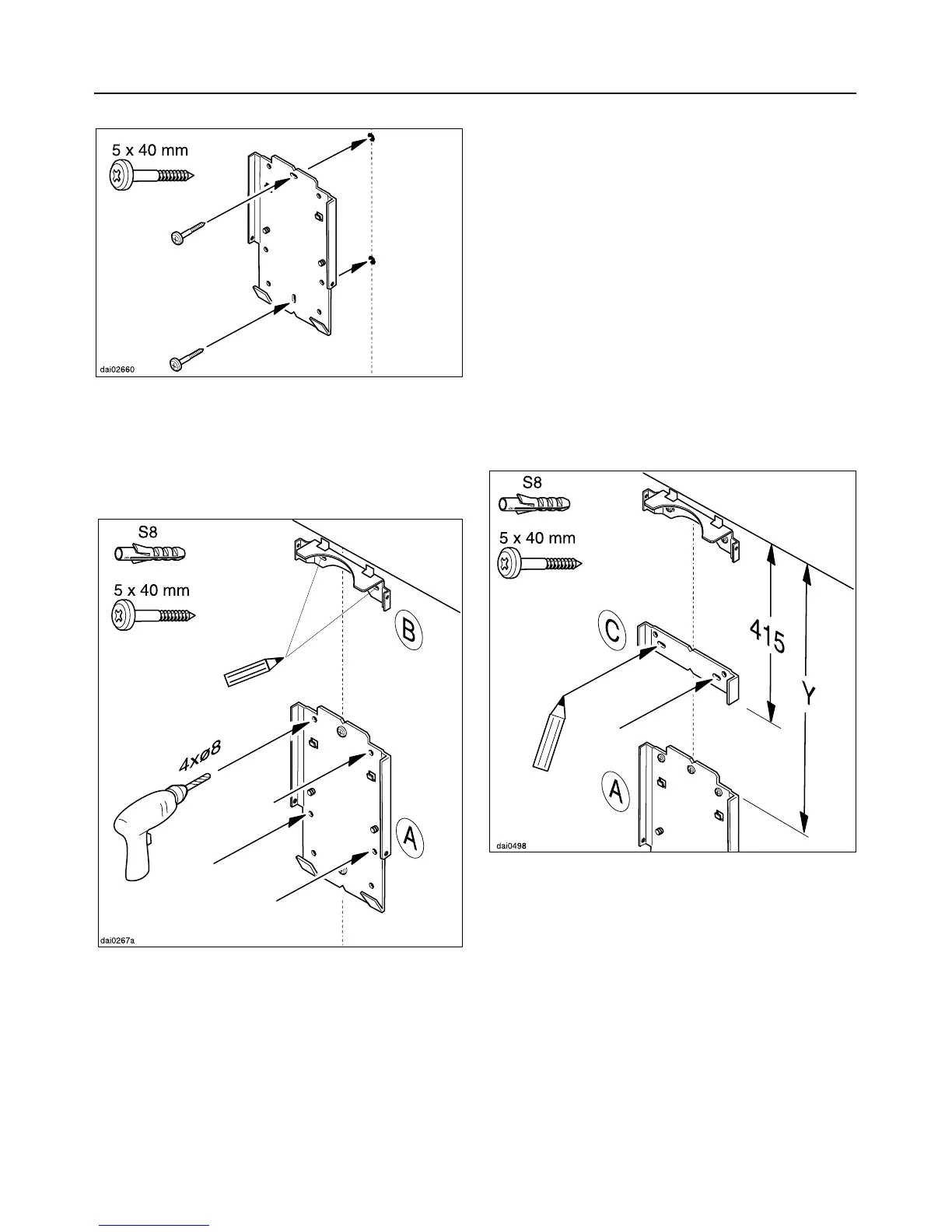

Lightly secure retaining plate A into
position using 5 x 40 mm screws
through the two holes and use the
notches to align with the middle line.
^
Drill 4 more 8 mm C holes through
the now fitted retaining plate and
press S8 plugs into the holes.
^
Screw two 5 x 40 mm screws into the
upper two holes.
Retaining plate B
^
Hold retaining plate B to the wall and
push up until it is directly below the
ceiling. Use the notches and the mid
-
dle line to align it horizontally. Mark
the 4 drill holes on the wall.
^
Drill two C 8 mm holes into the wall,
and push the S8 plugs into the holes.
^
Screw on the retaining plate with two
5 x 40 mm screws.
Retaining plate C
Retaining plate C only needs to be fit
-
ted if dimension Y is greater than
415 mm. It provides additional stability
for the extension piece.
Installation
19
