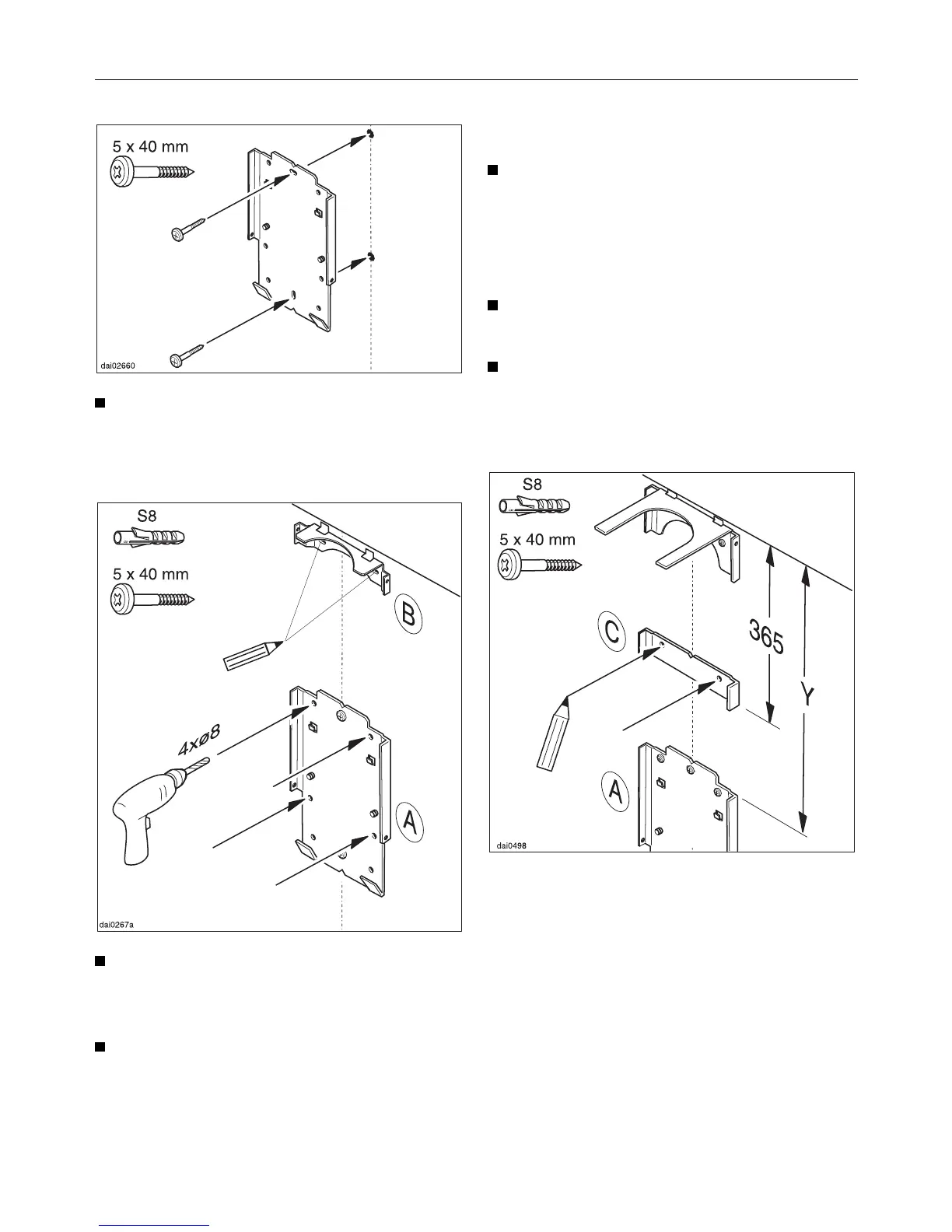

Lightly secure retaining plate A into
position using 5 x 40 mm screws
through the two holes and use the
notches to align with the middle line.
Drill 4 more 8 mm ø holes through
the now fitted retaining plate and
press S8 plugs into the holes.
Screw two 5 x 40 mm screws into the
upper two holes.
Retaining plate B
Hold retaining plate B to the wall and
push up until it is directly below the
ceiling. Use the notches and the
middle line to align it horizontally.
Mark the 2 drill holes on the wall.
Drill two, 8 mm ø holes into the wall,
and push the S8 plugs into the holes.
Screw on the retaining plate with two
5 x 40 mm screws.
Retaining plate C
Retaining plate C only needs to be
fitted if dimension Y is greater than 365
mm. It provides additional stability for
the extension piece.
Installation
25
