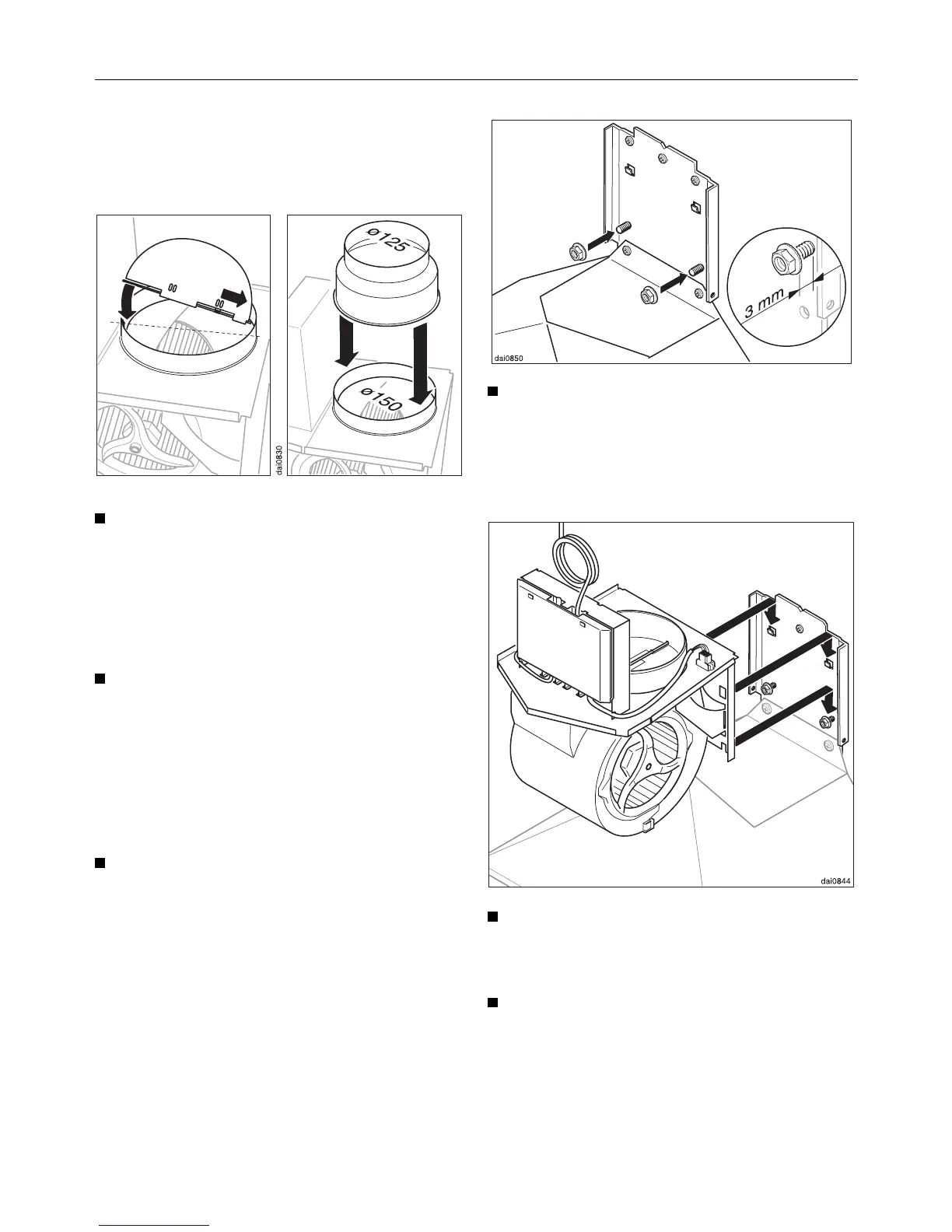

Motor unit
(not when operating the external fan)
with air extraction
If a non-return flap is not present in
the venting system, the non-return
flap supplied must be fitted into the
exhaust connection in the motor unit.
The flaps must open upwards.
The cooker hood is designed to take
ø 150 mm exhaust ducting.
If 125 mm ø exhaust ducting has to
be used the reducing collar needs
to be fitted into the exhaust connec-
tion on the motor unit.
(see "Connection for air extraction".
With recirculation mode:
Fit the reducing collar onto the ex-
haust connection.
The non-return flap is not required.
First loosely screw the two locking
nuts onto the threaded bolts on re-
taining plate A.
Leave a gap of approx. 3 mm for
hanging the motor on afterwards.
Fit the motor unit onto the hooks on
retaining plate A and slide down be-
hind the nuts.
Tighten the nuts.
Installation
27
