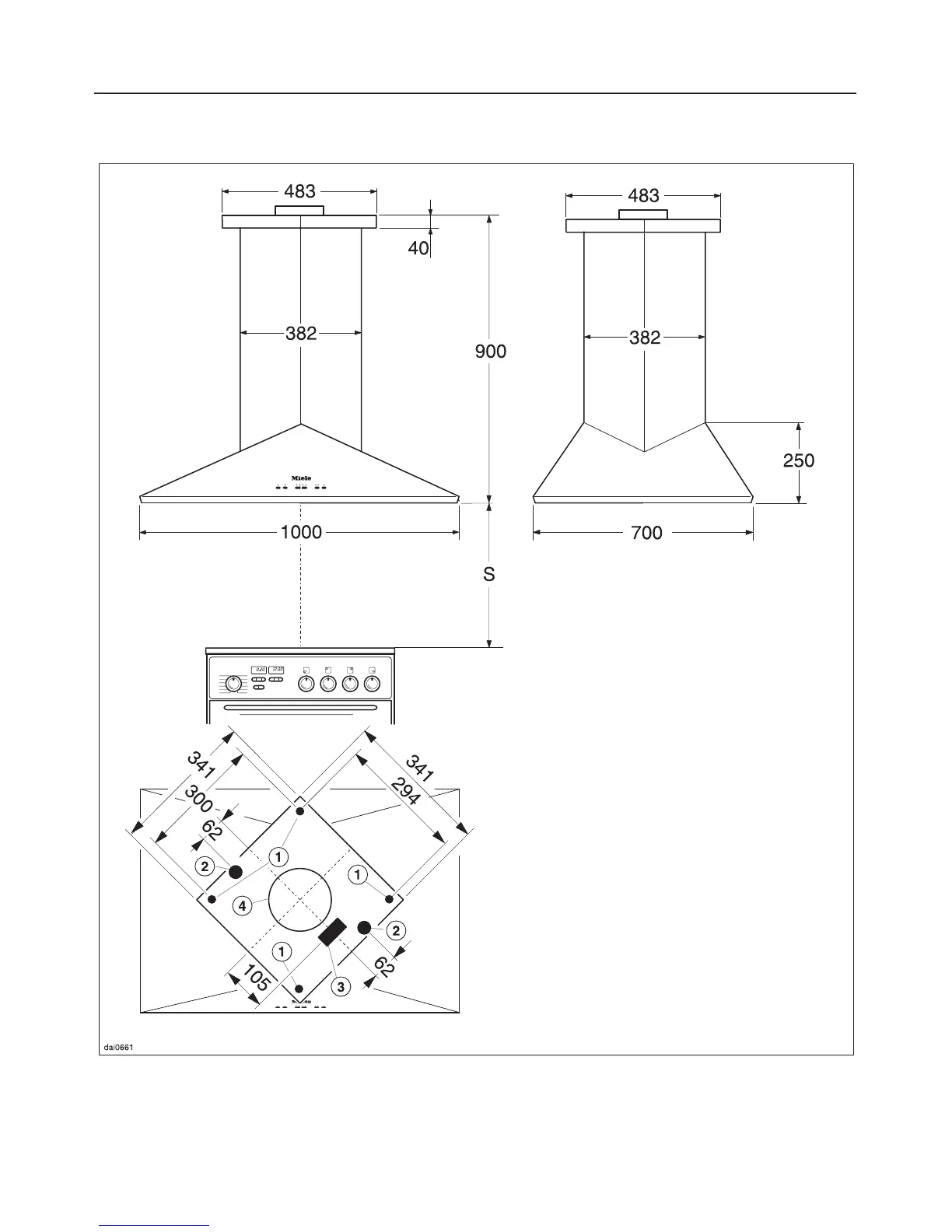

Miele DA 220-2 - DA 210-2, DA 210-2 EXT Dimensions

DA 210-2, DA 210-2 EXT
a Drill holes for fixing to the ceiling with C 8 mm screws
b Alternative positions for feeding through the mains supply cable
c Cut-out for feeding connection cable through to an external fan, min. 65 x 30 mm
d Ventilation stub C 150 mm
Appliance dimensions
23
