a 2 recirculation grilles
(for recirculation mode only).
b 2 protective sheets
for use when fitting the tower.
c 1 directional unit
(for recirculation mode only).
d 1 flexible aluminium hose for con
-
necting the directional unit to the ex
-
haust connection on the motor unit
(not on EXT models).
e 2 hose clips for securing the ex
-
haust ducting.
f 1 reducing collar
for exhaust ducting C 125 mm (not
on EXT models).
g 1 non-return valve for fitting into the
exhaust connection on the motor unit
(for extraction mode only, not on EXT
models).
h Upper retaining plate for securing
the extension piece.
i Middle retaining plate for securing
the extension piece.
j Lower retaining plate for securing
the appliance unit.

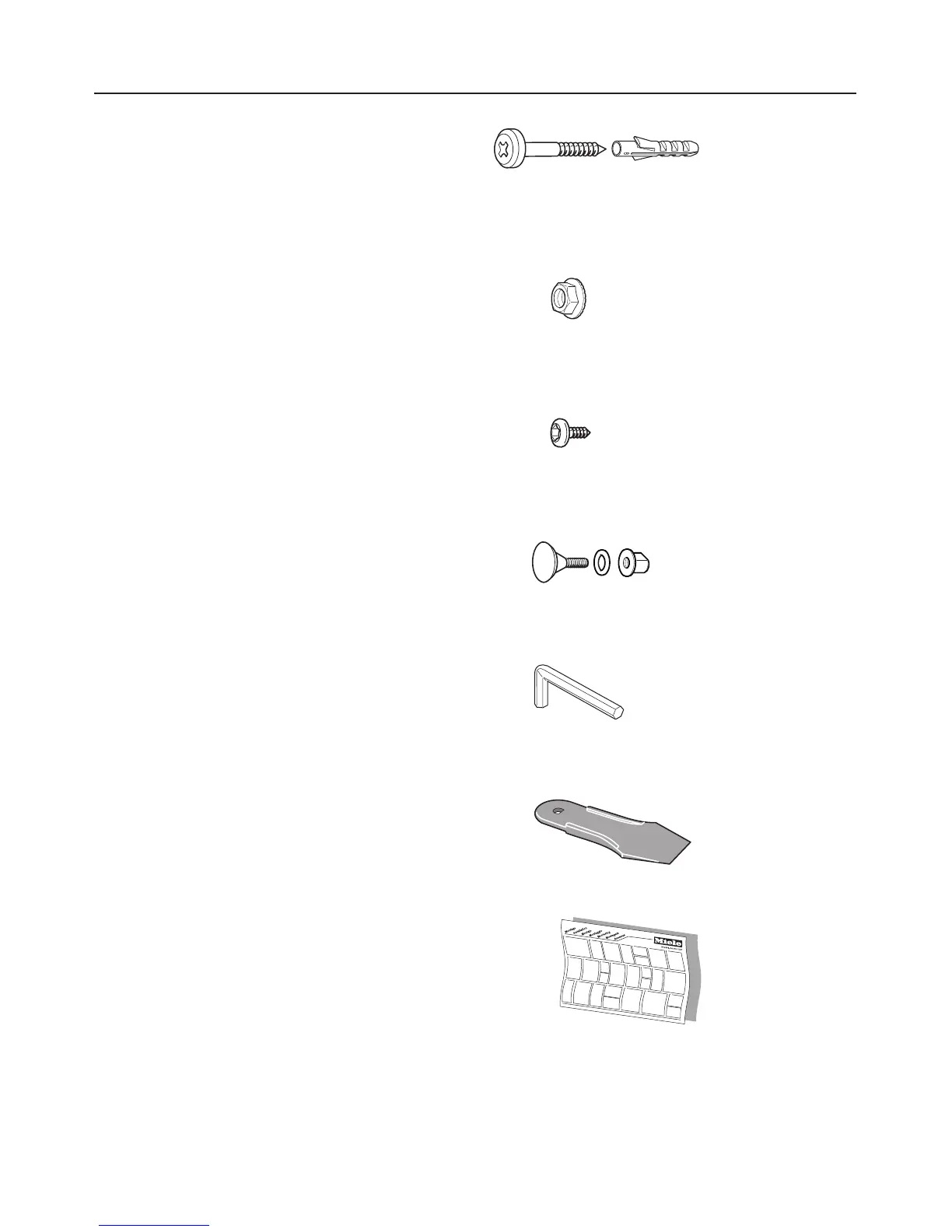

8 large headed screws 5 x 40 mm and
8 x S 8 plugs for securing the retaining
plates.
2 x M 6 self-tapping nuts for securing
the appliance unit.
2 screws 3.9 x 7.5 mm for securing the
tower.
2 x M 4 screws with nuts and plastic
washers for securing the glass panel.
1 hexagonal (Allen) key
for adjusting the appliance height.
1 lever for removing the tower.
Installation sheet DIN A3.
Installation
27
