DA 259-4
DA 252-4
DA 259-4 U
1) and 2):
(2 is not required for recirculation mode
cooker hoods)
The shaded area represents the wall or
ceiling area for the vent cut-out, for
fitting the connection socket and on
EXT models for feeding the connection
cable through to the external motor.
For recirculation mode, only a
connection socket needs to be fitted.
Connection for air extraction
C 150 mm, or C 125 mm with reducing
collar.

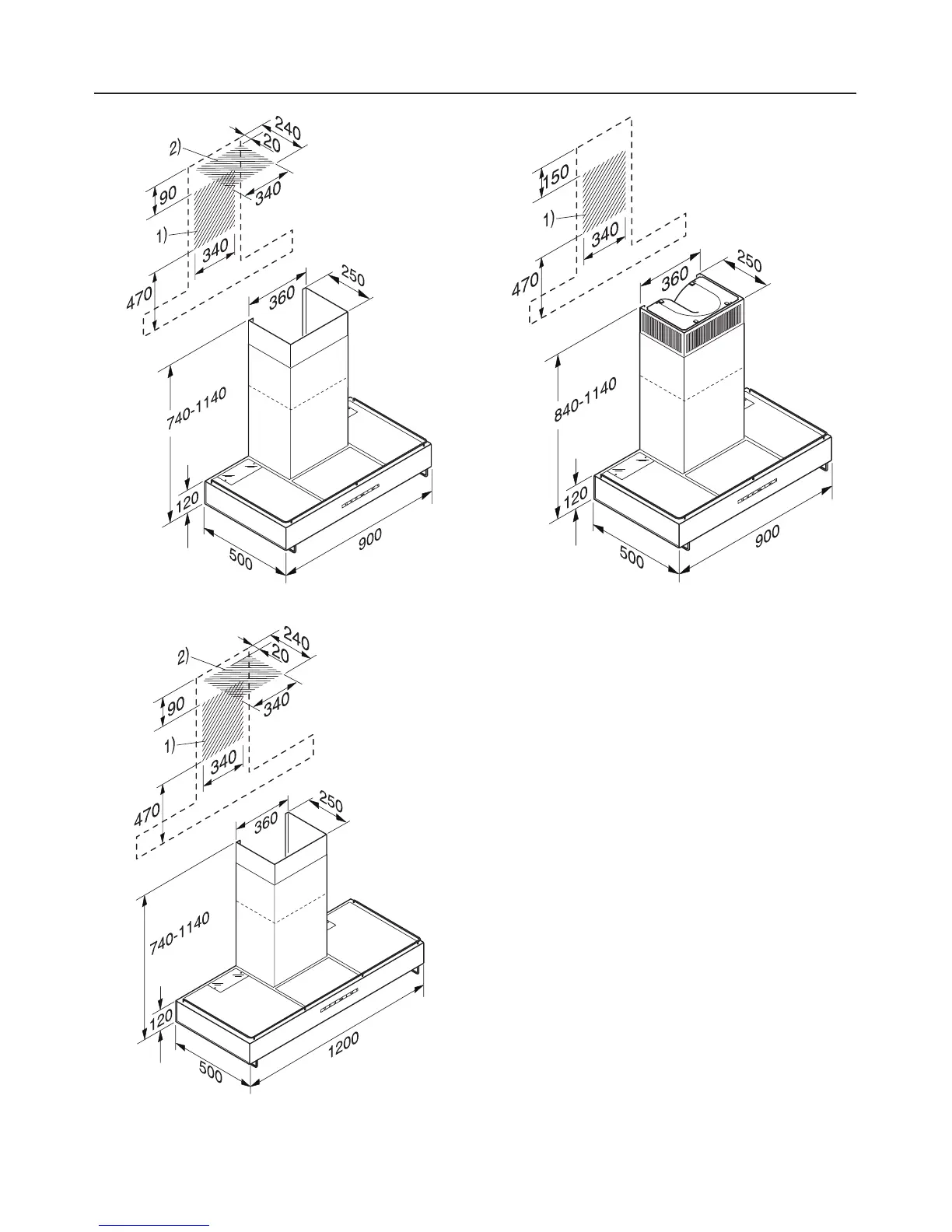

Appliance dimensions
24
