a 3 protective sheets
for use when fitting the tower.
b Upper retaining plate for securing
the extension piece and for securing
the directional unit.
c 1 directional unit
(only with "...U" models)
d 1 flexible aluminium hose for
connecting the directional unit to the
exhaust socket on the motor unit
(only with "...U" models).
e 2 hose clips for securing the
exhaust ducting.
f 1 reducing collar for exhaust
ducting C 125 mm
(not on "...EXT" and "...U" models).
g 1 non-return valve for fitting into the
exhaust connection on the motor unit
(not on "...EXT" and "...U" models).
h Middle retaining plate for securing
the extension piece.
i Lower retaining plate for securing
the canopy.
j 2 active charcoal filters
(only with "...U" models)

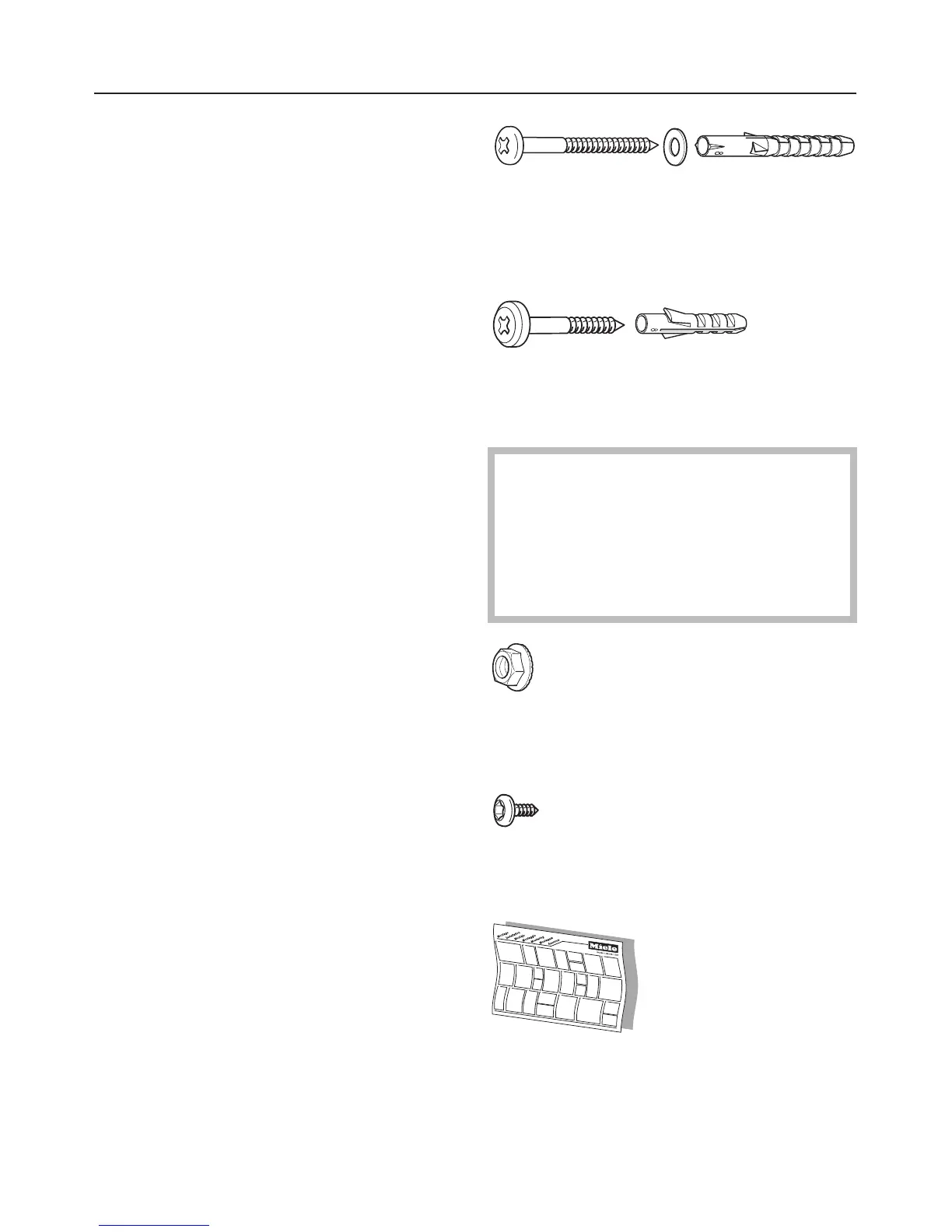

4 screws 5x60 mm,
4 washers 5.3 mm,
4 plugs S8R60 for securing the lower
retaining plate.
6 large headed screws 5 x 40 mm and
6 x S 8 plugs
for securing the retaining plates.
The screws and plugs are designed
for use in solid walls only.
For other types of wall construction,
alternative fixings will be required.
Make sure that the wall is able to
take the weight of the cooker hood.
2 M 6 locking nuts for securing the
canopy.
4 screws 3.9 x 7.5 mm for securing the
tower and the extension piece
