Installation
35
a
1 collar for exhaust ducting 6" /
150 mm.
b
1 reducing collar for exhaust
ducting 5" / 125 mm.
c
1 non-return flap for fitting into the
exhaust socket on the motor unit
(not needed for recirculation mode).
d
Conversion kit for recirculation
mode (the conversion kit is not
supplied. It must be ordered
separately as an optional accessory
- see "Technical data"). The kit
contains an exhaust grille and
flexible aluminum hose with hose
clips.

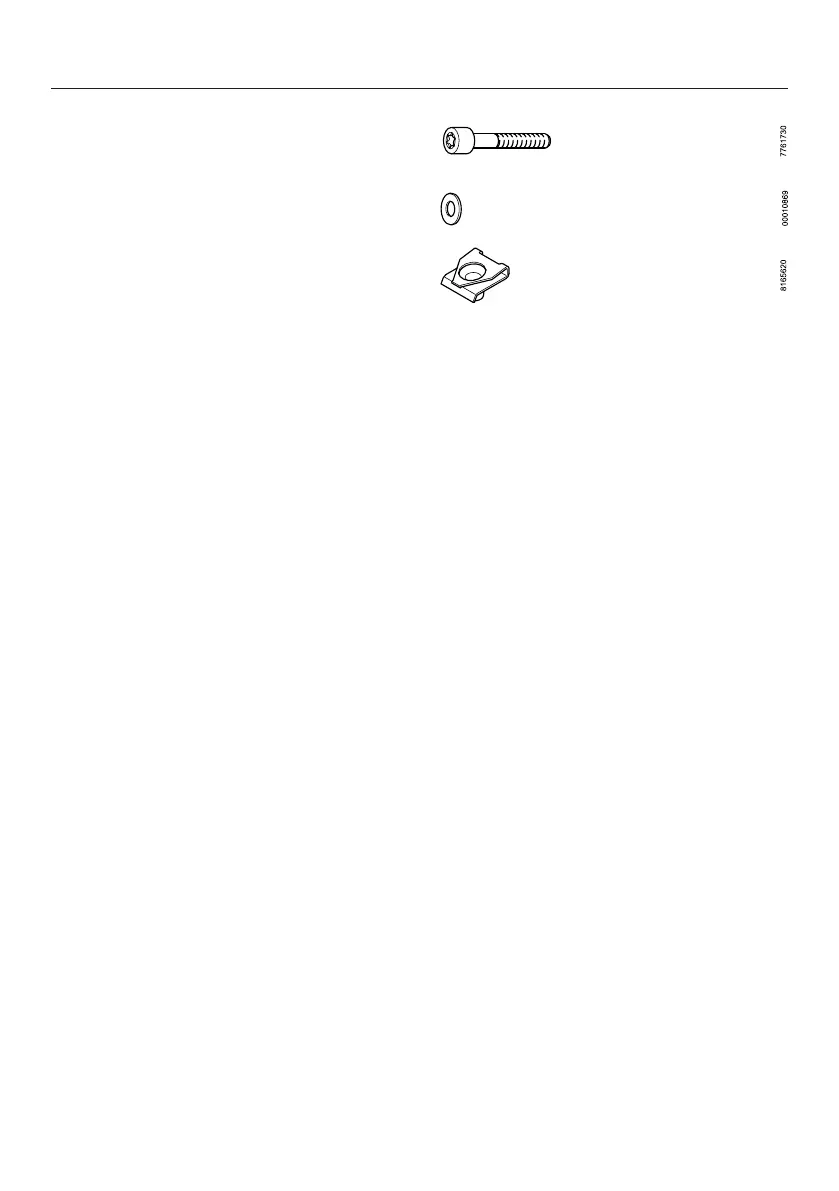

4 x M5 x 40 mm (1 5/8") screws, 4
washers, 4 x M5 nuts for securing the
ventilation hood to an interim shelf.
