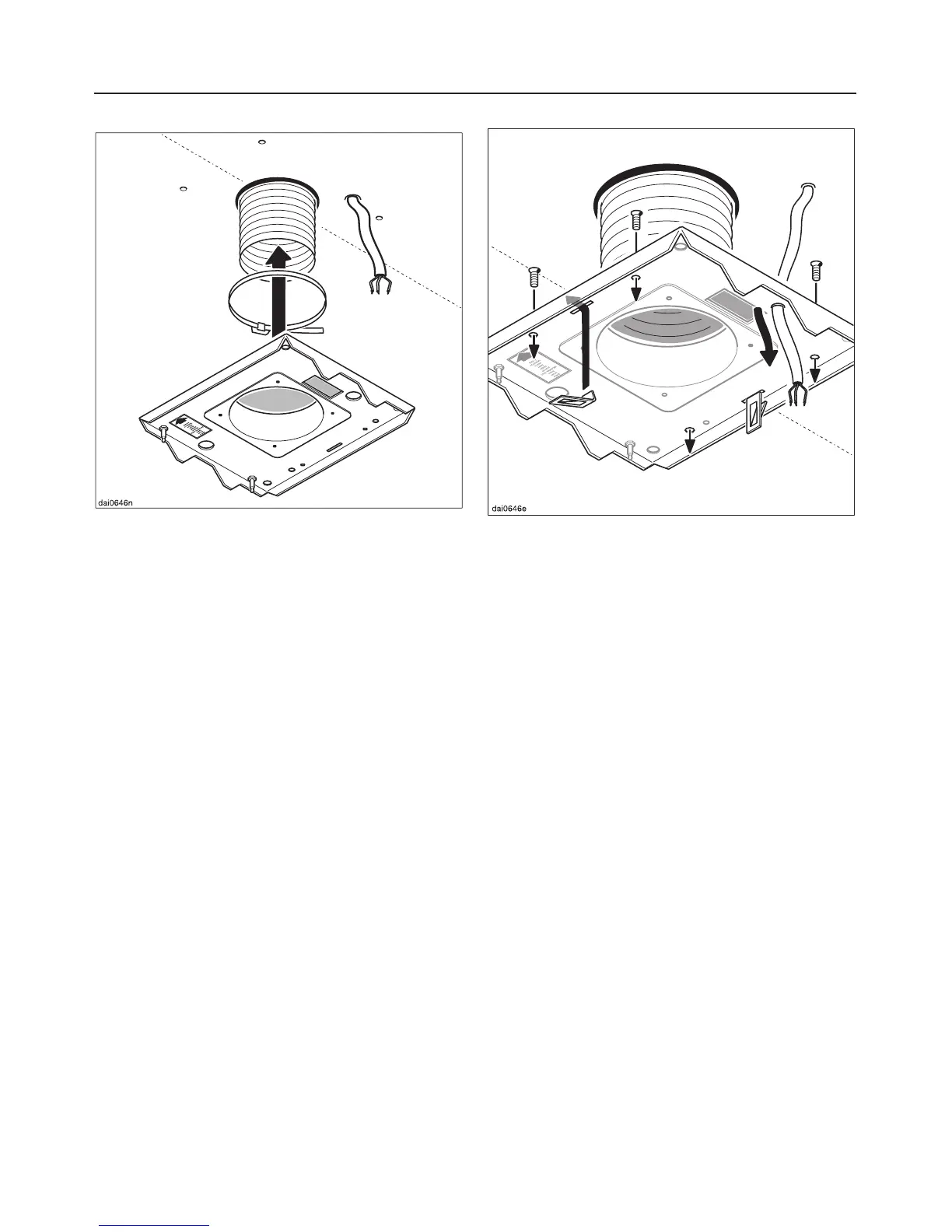

^ Secure the ducting to the mounting
plate using a hose clip.
^ Insert the short edge of the two
spring clips into their slots from
below and pivot them 90° so that the
tab faces the center of the mounting
brake.
^ Pull the power cord through the
mounting plate.
^
Insert the four countersunk screws
M 6 x 20 into the recessed holes from
above.
^
Tape the screws from above to
prevent them from being pushed
upwards when the nuts are tightened.
Installation
29
