DA 3160
DA 3180*
DA 3190*
1) The front section of the wall housing
unit must be fitted with a shelf to the
depth of the partition wall.
2) The partition wall in the wall unit must
be removable.
3) In extraction mode: when measuring
for the height of the wall housing unit
and the cut-out, account must be taken
of any accessories fitted, e.g. silencer,
DSM module.
4) Recirculation mode with conversion
kit DUU 151.
5) Accessory DSM 400.
* Installation is also possible in a
600 mm wide unit.

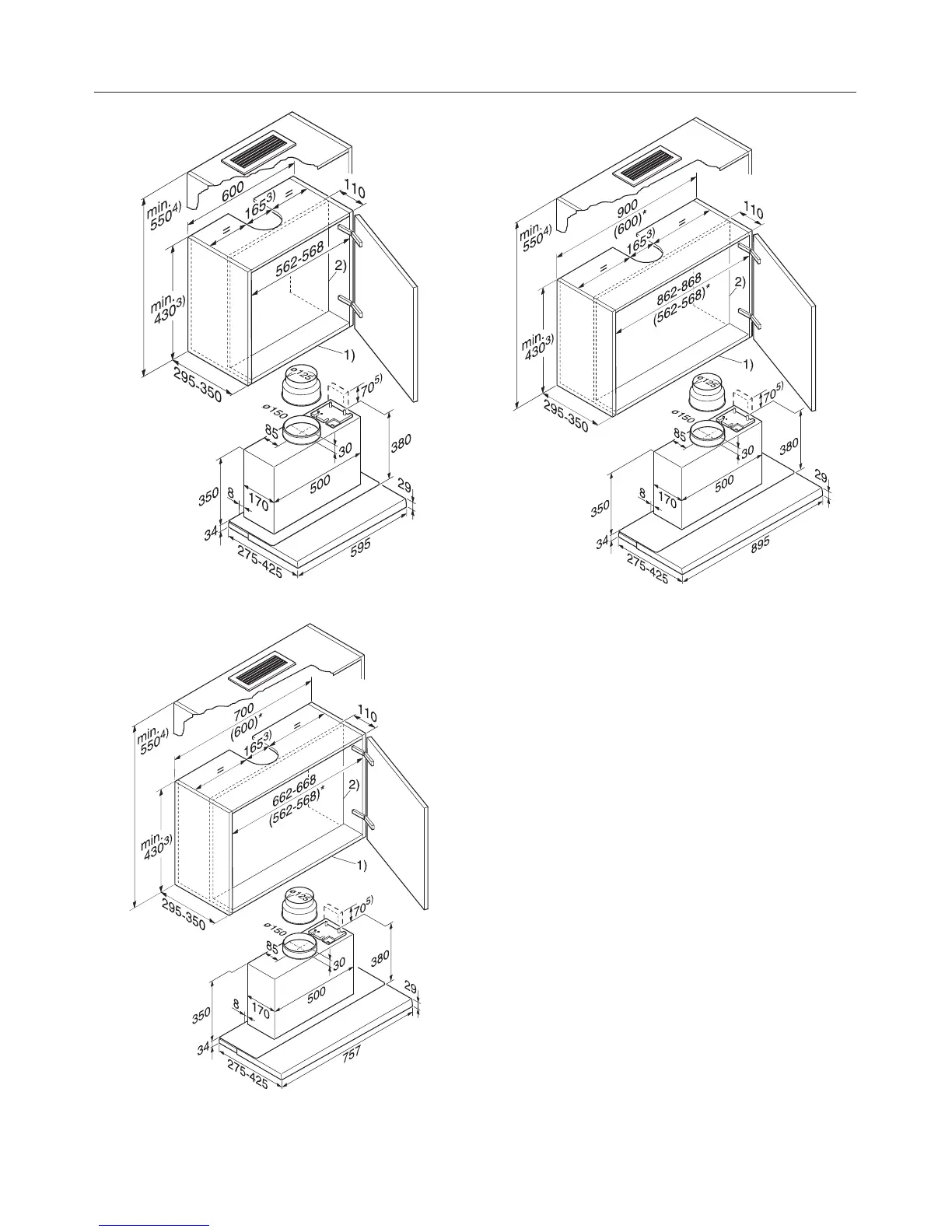

Appliance dimensions
20
