a 1 exhaust socket
for exhaust ducting C 150 mm.
b 1 reducing collar
for C125 mm exhaust ducting.
c 1 non-return flap
for fitting into the exhaust socket (for
air extraction mode only).
d 2 brackets
to support the appliance in the wall
unit.
e 1 spacer strip
to conceal the gap between the rear
of the appliance and the wall.
f Conversion kit for recirculation
mode
contains exhaust grille and flexible
aluminium hose with clips (this is not
included, but is available as an
optional extra - see Technical Data).
g DML 400 installation kit
(optional accessory)
contains hinging and screws for
fixing a lightshield to match kitchen
furniture (lightshield not supplied with
cooker hood)

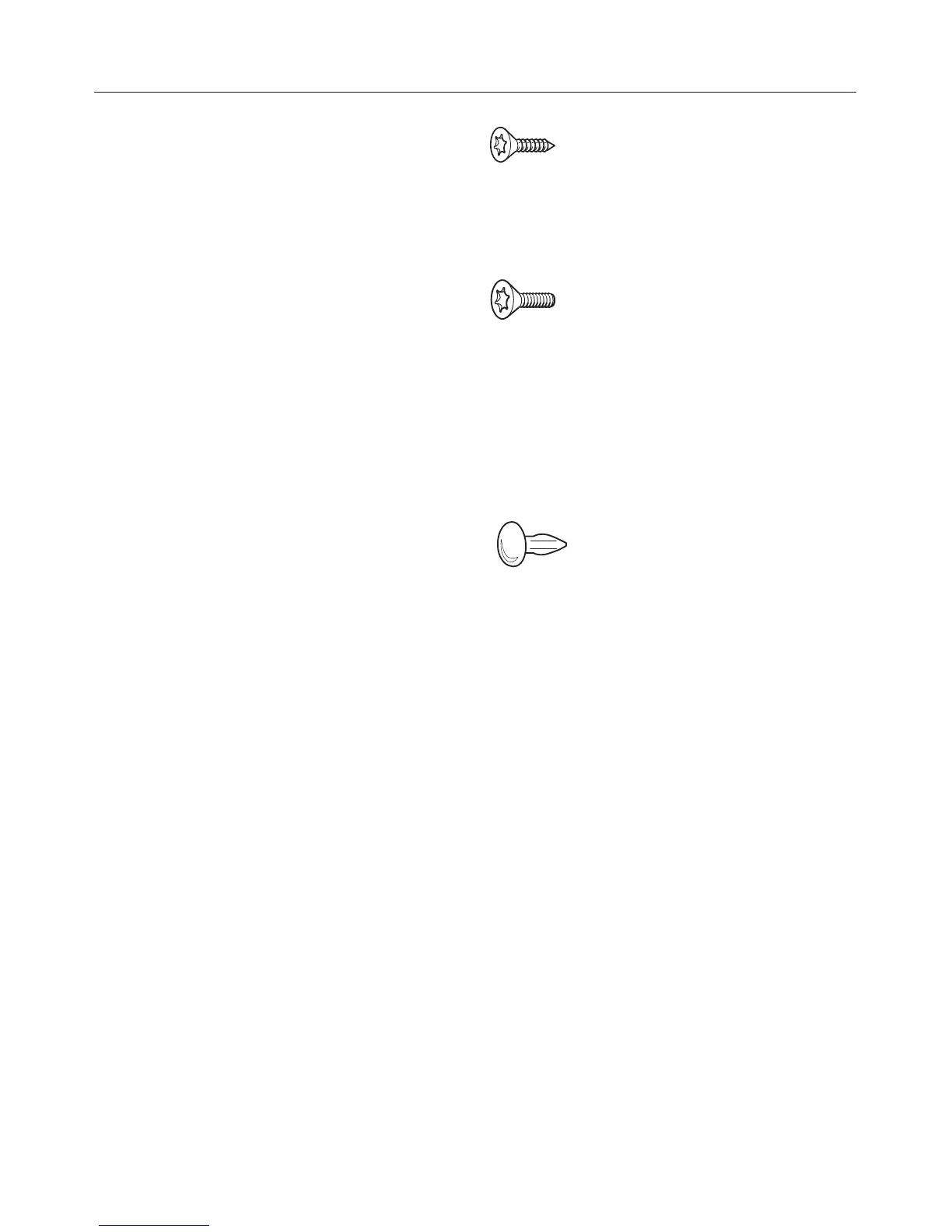

12 screws4x15mm
for securing the cooker hood into the
wall unit.
8 screws M4 x 12 mm
for securing the cooker hood to the
brackets.
4 of the screws can be used instead of
the plastic rivets to secure the spacer
strip.
4 plastic rivets
for securing the spacer strip to the
back of the appliance.
