Miele DA 3490 - Installation Accessories

a 1 exhaust connection
for exhaust ducting C 150 mm.
b 1 non-return flap
for fitting into the exhaust socket on
the motor unit (not needed for
recirculation mode).
c 2 brackets
to support the appliance in the wall
unit.
d 1 spacer strip
to conceal the gap between the rear
of the appliance and the wall.
e Conversion kit for recirculation
mode
including exhaust grille and flexible
aluminium hose with clip (the
conversion kit is not supplied with
the rangehood but is available as an
optional extra; see "Technical data").
f DML 400 installation kit (available
as an optional accessory)
contains hinging and screws for
attaching a lightshield to match
kitchen furniture (lightshield not
supplied with rangehood but is
available as an optional extra).

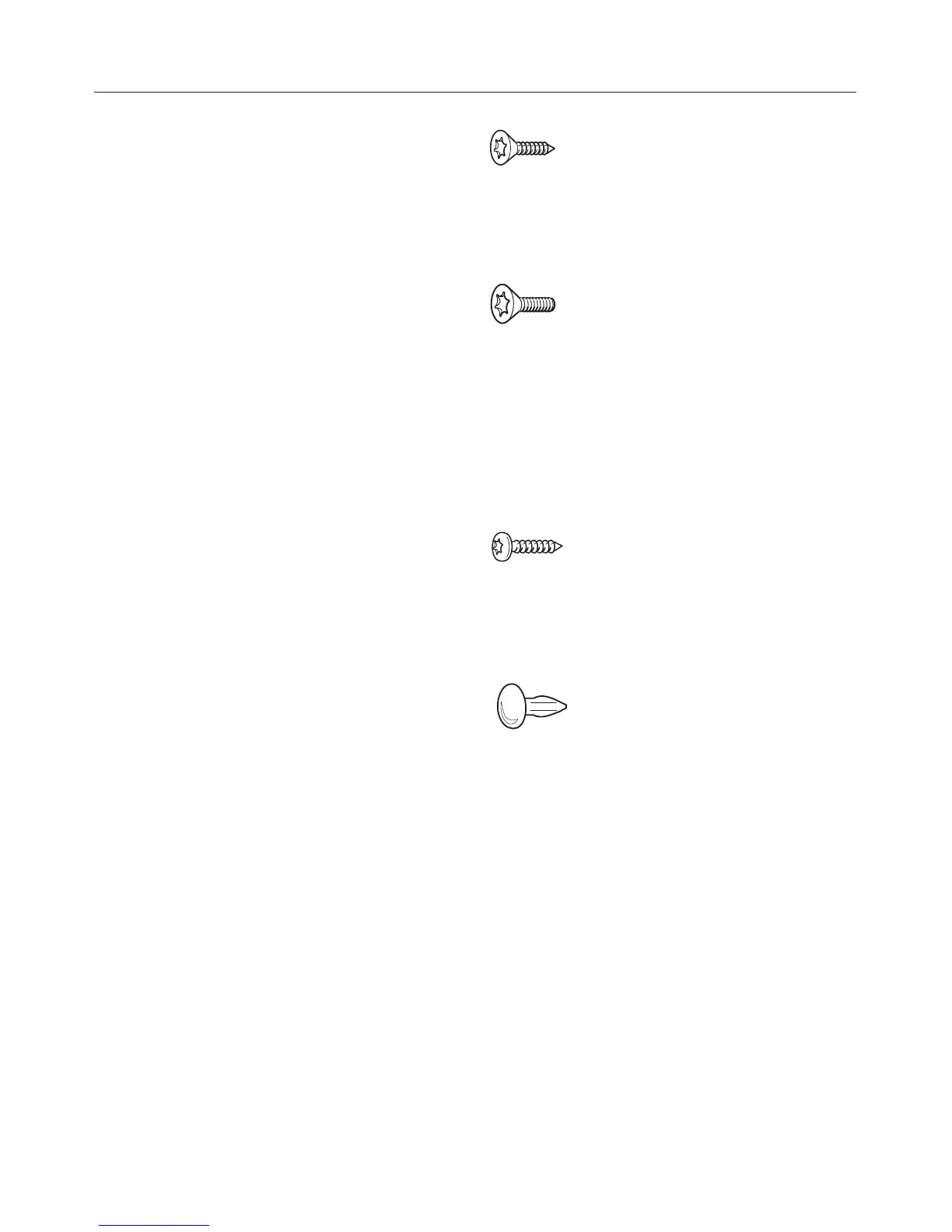

8 screws4x15mm
for securing the rangehood to the wall
unit.
8 screws M4 x 12 mm
for securing the rangehood to the
brackets.
4 of the screws can be used instead of
the plastic rivets to secure the spacer
strip.
2 screws4x15mm,
for securing the rangehood to the rear
wall.
4 plastic rivets
for securing the spacer strip to the rear
of the appliance.
