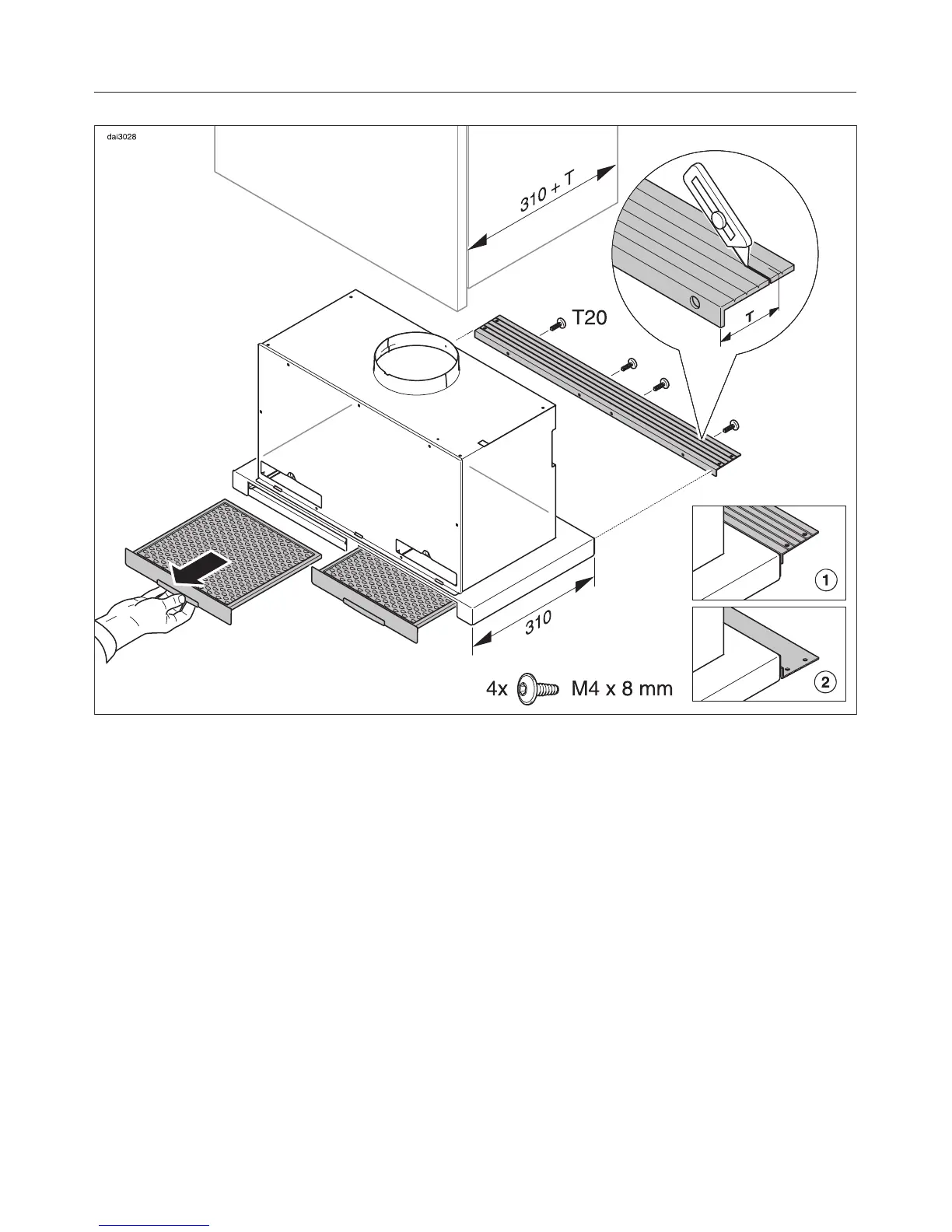

Pull the grease filters out of the slots
in the front of the cooker hood
housing.
The spacer strip needs to be attached
to the back of the cooker hood housing
before the cooker hood is installed in
the wall unit. The spacer strip can be
attached to the upper a or lower edge
b of the deflector plate.
^
Calculate measurement T for the
spacer strip.
^
Cut the spacer strip to
measurement T. Score along the
groove for the smaller measurement
as shown, and remove the surplus.
^
Screw the spacer strip to the back of
the cooker hood at the required
position.
Use the screws supplied. To attach
the spacer strip to the lower edge b
use the screws in the housing unit.
Installation
30
