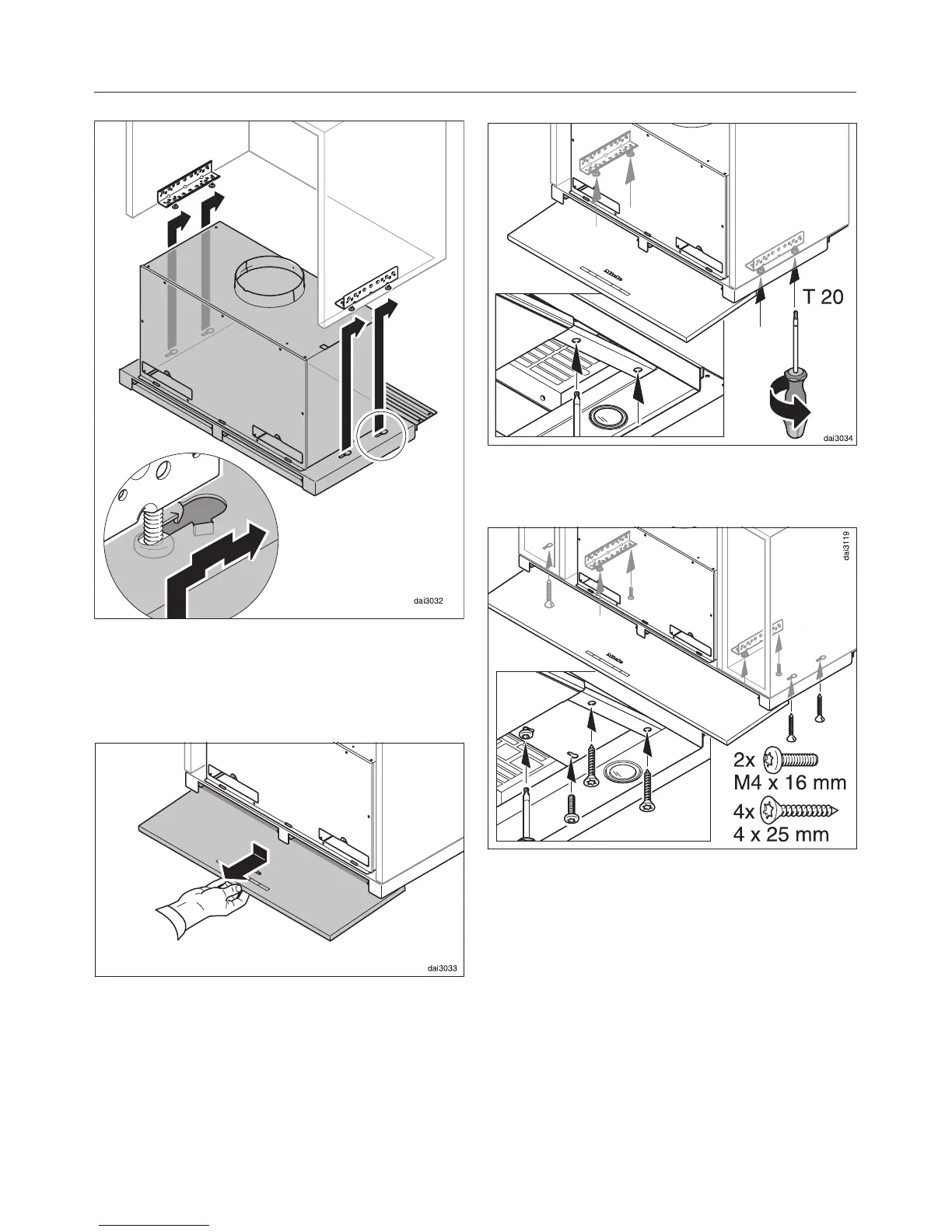

^ Fit the cooker hood into the wall unit
from below, guiding it over the safety
notch, as shown. Push it back until
the spacer strip is flush with the wall.
^
Pull the deflector plate downwards
slightly and then towards you.
^
Tighten the four securing screws
from below.
^
When fitting a 900 mm wide cooker
hood in a 600 mm wide wall unit,
insert the two rear screws at this
stage. In this instance you will also
need to secure it to the base on
either side.
^
Push the deflector plate back in.
Installation
32
