Installation
40

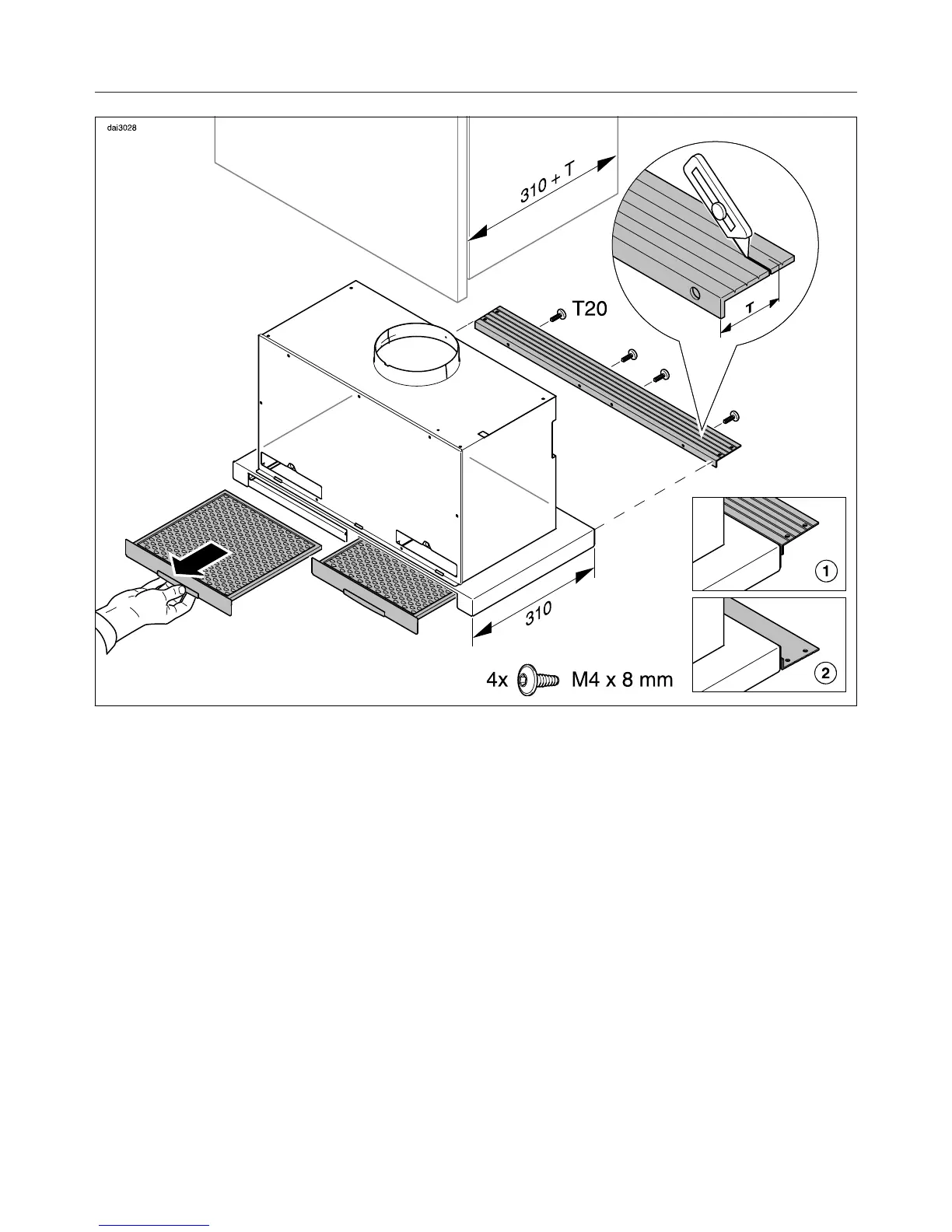

Pull the grease filters out of the slots
in the front of the cooker hood hous‐
ing.
The spacer strip needs to be attached
to the back of the cooker hood housing
before the cooker hood is installed in
the wall unit. The spacer strip can be
attached to the upper or lower edge
of the deflector plate.
Calculate the measurement T for the
spacer strip
Cut the spacer strip to measurement
T. Score along the groove for the
smaller measurement as shown, and
remove the surplus.
Screw the spacer strip to the back of
the cooker hood at the required posi‐
tion. Use the screws supplied. To at‐
tach the spacer strip to the lower
edge use the screws previously re‐
moved from the housing unit.
