DA 406
DA 407
DA 409
1) Extraction
2) Recirculation
3) Ventilation grille position for
recirculation
4) and 5):
(5 is not required for recirculation mode
cooker hoods)
The shaded area represents the wall or
ceiling area for the vent cut-out, for
fitting the connection socket and on
...EXT models for feeding the
connection cable through to the
external motor.
For recirculation mode, only a
connection socket needs to be fitted.
Connection for air extraction C 150
mm or C 125 mm with reducing collar.

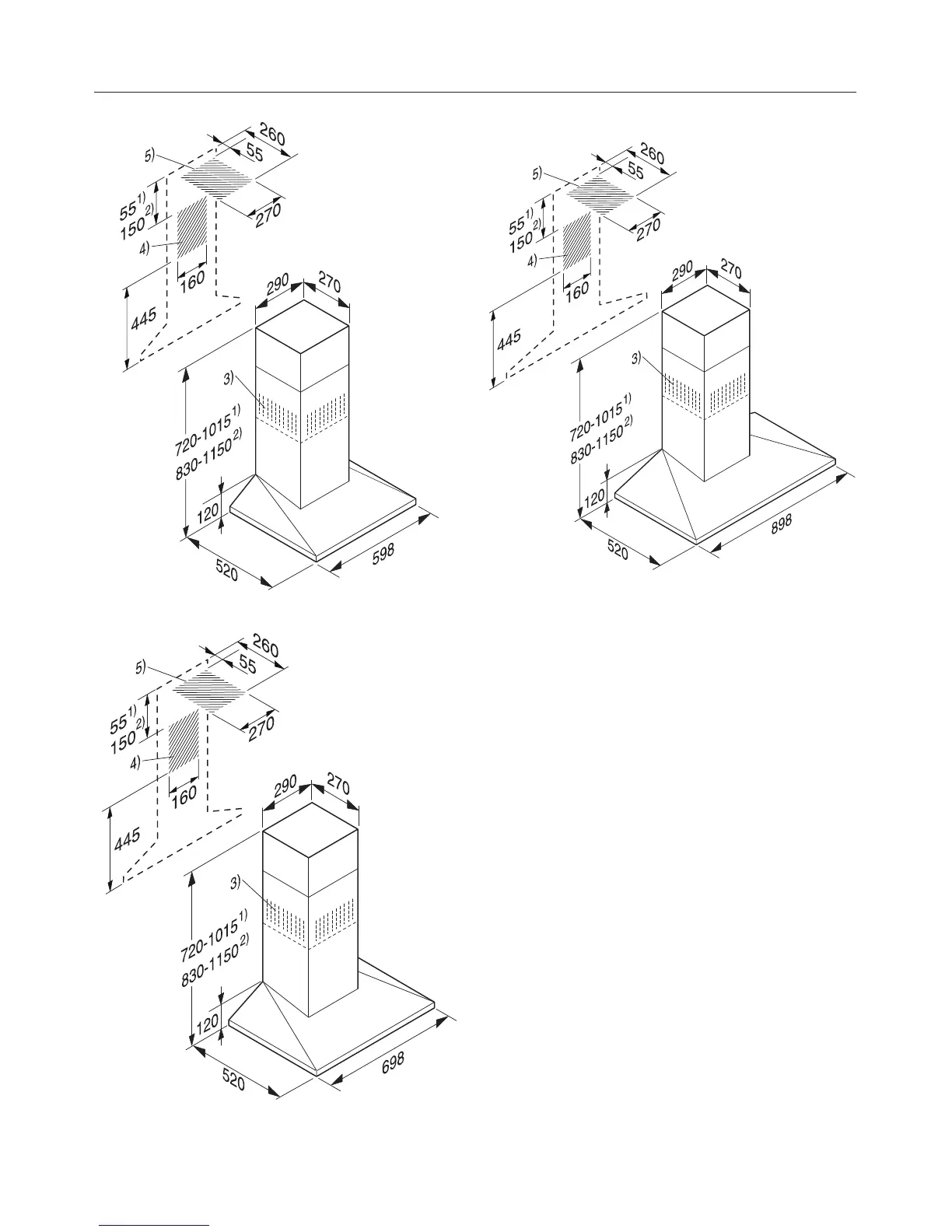

Appliance dimensions
26
