a 3 protective sheets
for use when fitting the tower.
b 2 hose clips for securing the
exhaust ducting.
c 1 reducing collar
for exhaust ducting C 125 mm.
d 1 non-return flap
for fitting into the exhaust connection
on the motor unit (not needed for
recirculation mode)
e Telescopic retaining plate for
securing the cooker hood to the wall.
f Conversion kit for recirculation
mode
including directional unit and flexible
aluminium hose (the conversion kit is
not supplied with the cooker hood,
but is available as an optional extra.
See "Technical data").

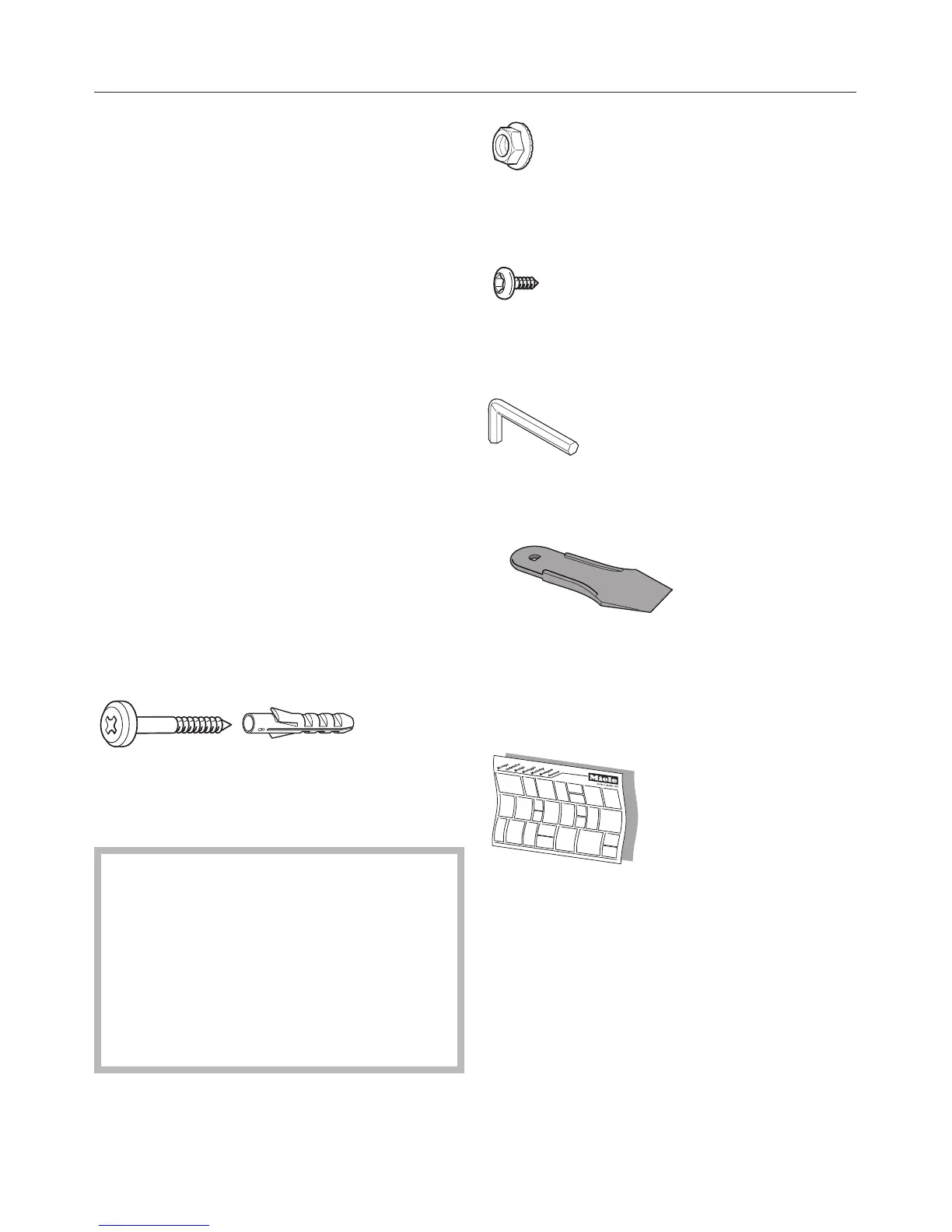

7 screws5x40mmand
7xS8plugs for securing the retaining
plate to the wall.
The screws and plugs are designed
for use in solid walls.
For other types of wall construction,
alternative suitable fixings will be
required.
Make sure the wall is strong enough
to bear the weight of the cooker
hood.
2xM6self-tapping nuts for securing
the appliance.
2 screws 3.9 x 7.5 mm
for securing the tower.
1 hexagonal (Allen) key
for adjusting the appliance height.
1 lever
for removing the lamp cover and the
decor inserts, and for removing the
tower.
Installation instructions
Installation
27
