a 3 protective sheets
for use when fitting the tower.
b 1 exhaust connection for exhaust
ducting C 150 mm.
c 1 reducing collar
for exhaust ducting C 125 mm.
d 1 non-return flap
for fitting into the exhaust connection
on the motor unit (not needed for
recirculation mode).
e Telescopic wall bracket for
securing the cooker hood to the wall.
f Damper
to protect the glass canopy when it is
tilted up and down.
g Conversion kit for recirculation
mode
including directional unit and flexible
aluminium hose with clips (this is not
included, but is available as an
optional extra - see Technical Data).

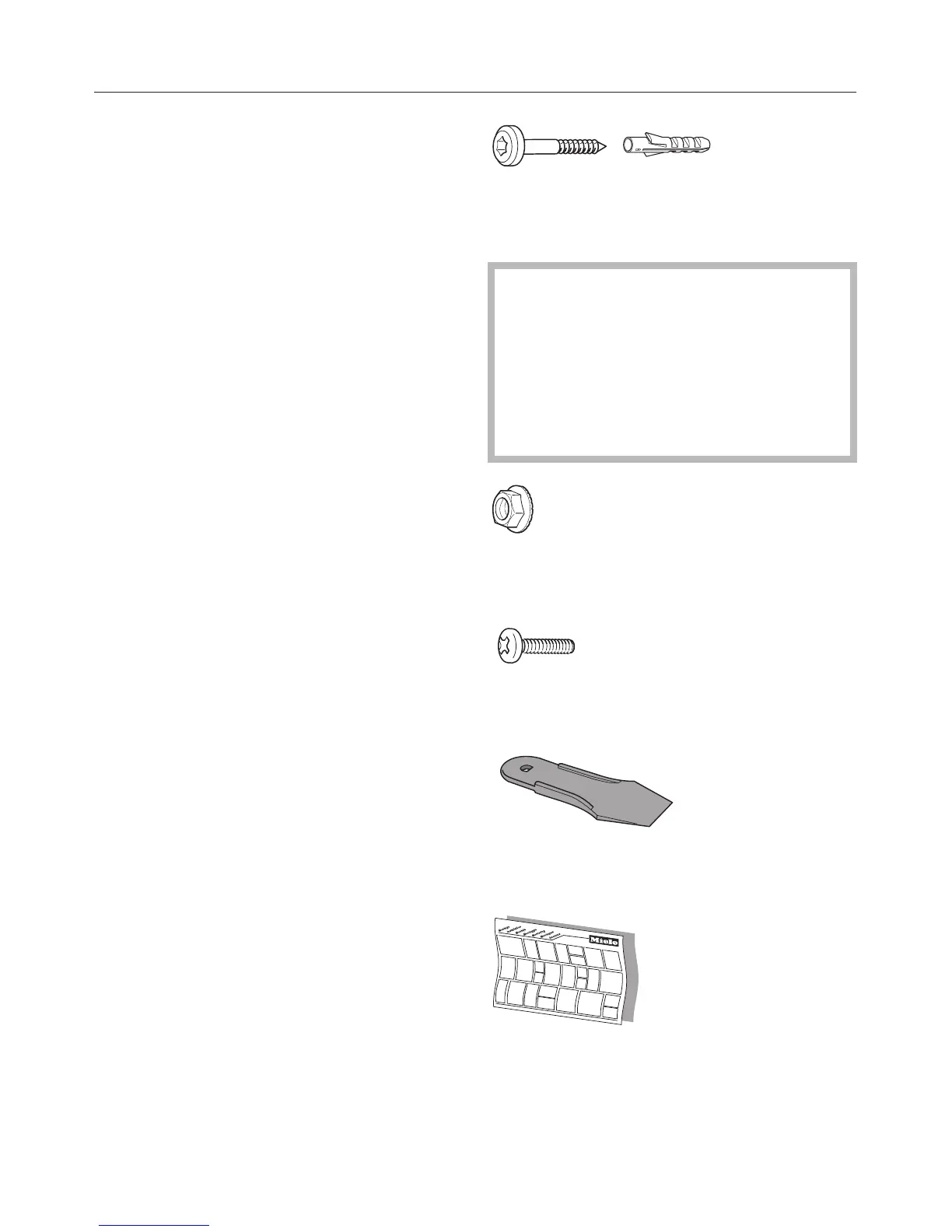

8 large headed screws5x40mm
and 8xS8plugs for securing the
retaining plates and the appliance unit.
,
The screws and plugs are
designed for use in solid walls.
For other types of wall construction,
alternative fixings will be required.
Make sure the wall is strong enough
to bear the weight of the cooker
hood.
2xM6self-tapping nuts for securing
the appliance.
8 screwsM4x16mmfor securing the
canopy and the filter housing
1 lever
for dismantling the tower.
Installation instructions
Installation
31
