Installation
31
Before installation
Befor
e installation, it is important
to read the information given on the
following pages as well as the
"Warning and Safety instructions" at
the beginning of this booklet.

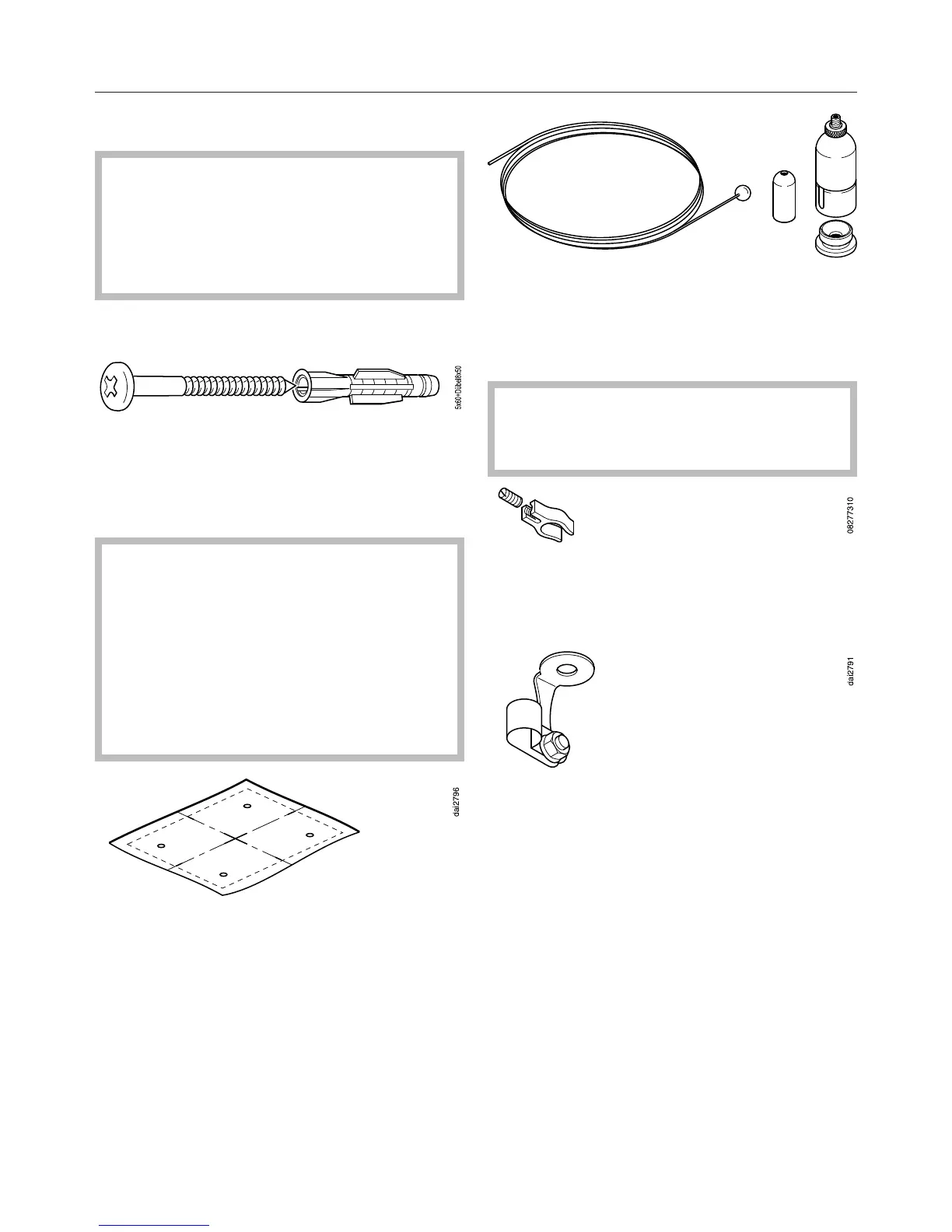

Assembly parts
4 screws 5 x 60 mm and
4 plugs 8 x 50 mm
For securing the appliance to the
ceiling.
The screws and plugs are suitable
for use in
concrete ceilings only.
For other types of ceiling
co
nstruction, alternative fixings will
be required.
Make sure the ceiling is able to take
the weig
ht of the rangehood (see
"Technical data").
Drilling template
One of the cardboard inserts serves as
the drillin
g template.
4 sets of ceiling fixings
For suspending the rangehood,
comprising 4 suspension cables, 4
housing fixings and 4 ceiling fixings.
The wire cables must not be used to
secu
re additional components (e.g.
an interim shelf).
3 cable clamps
For securing the mains connection
cable t
o one of the suspension cables.
1 cable guide
For securing the mains connection
c
able to one of the ceiling fixings.
Installation instructions
See enclosed installation sheet for
instruc
tions on how to install this
appliance.
