Miele DA 6890 - Connecting the Motor Unit

Installation
*INSTALLATION*
28

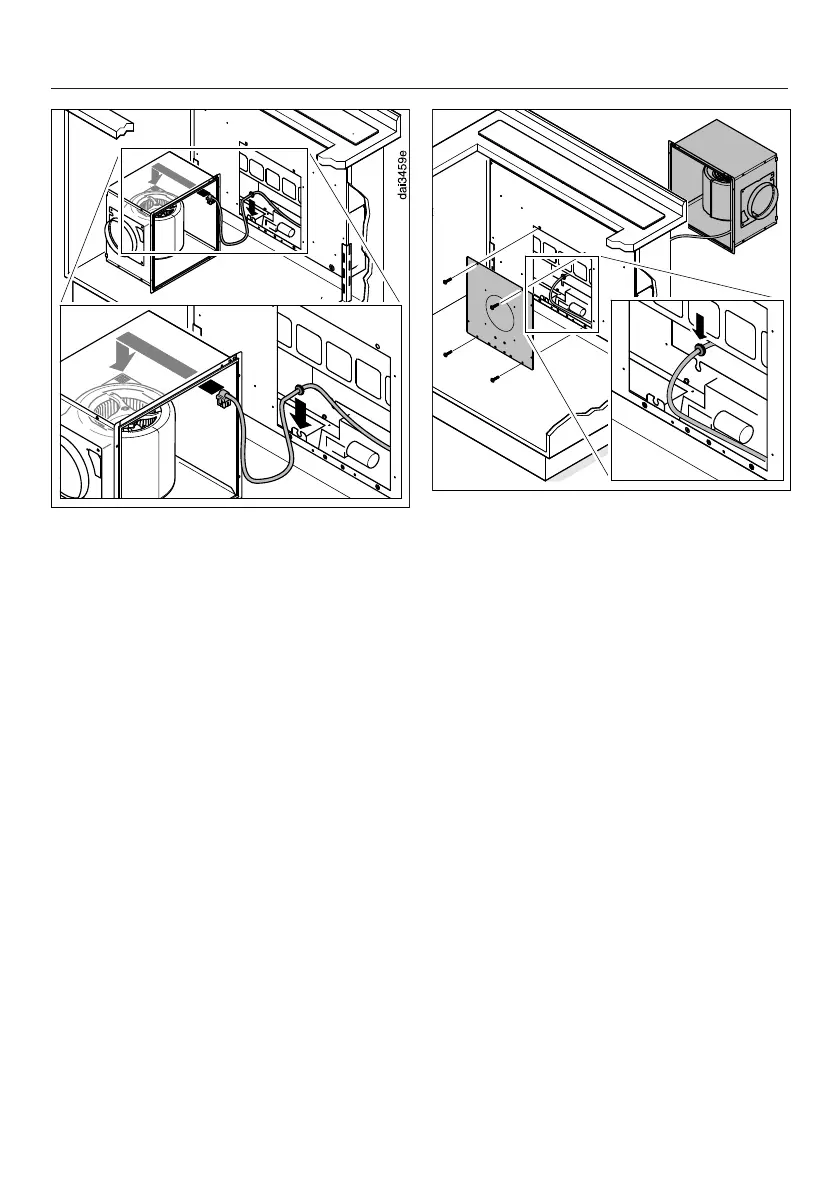

 Guide the connection cable from the
downdraft extractor to the motor unit
and plug it into the motor.
 Position the cable and push into the
holder on the casing with the cable
grommet supplied.
dai3459g
 Alternatively the motor can be fitted
onto the downdraft extractor from
behind.
- To do this, remove the back cover
from the casing and fit it onto the
front.
- Place the cable grommet onto the
connection cable and insert it into the
holder on the rear opening of the
appliance.
Tip: The DEXT6890 conversion kit
provides a means of installing the motor
in a suitable alternative location of your
choice within the home.
It is electrically connected to the
downdraft extractor by a 7m long
connection cable.
The conversion kit is available to
purchase as an optional extra. It is
supplied with its own installation
instructions which must be observed.
