Installation
*INSTALLATION*
30

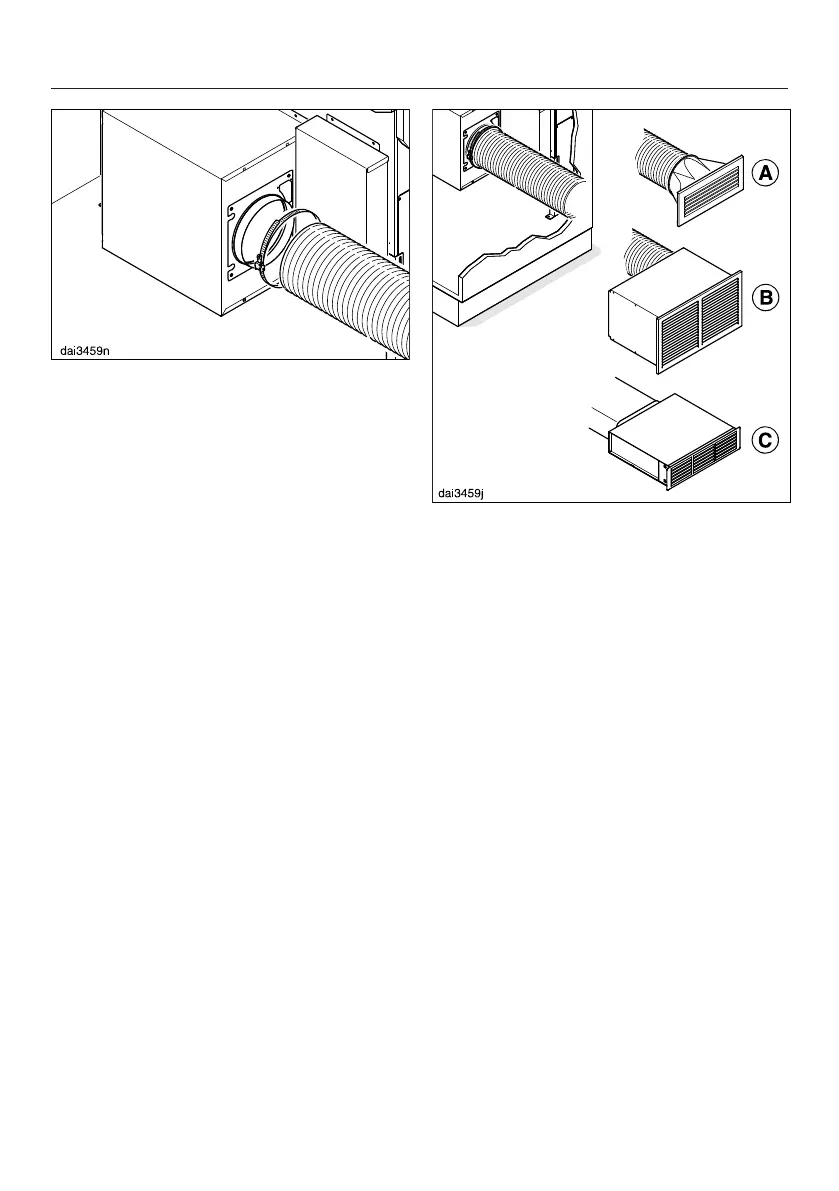

Attach the exhaust ducting, e.g.
flexible hose, to the exhaust socket
using a hose clip (available as an
optional accessory).
Extraction mode
See “Connection for air extraction”
for further instructions on fitting the
ducting.
Recirculation mode
If site conditions are not suitable for the
cooker hood to be used with air
extraction, the downdraft extractor must
be set up for recirculation. There are
several options for this:
- connect DUU 151 recirculation
conversion kit to the exhaust
socket. The downdraft extractor
grease filters must be fitted with DKF
22-1 charcoal filters (see “Cleaning
and care”)
or
- connect recirculation box
DUU2900 or recirculation box
DUU1000 to the exhaust socket.
The charcoal filters are integrated in
the recirculation box so charcoal
filters do not have to be fitted in the
downdraft extractor.
Conversion kits DUU 151, DUU 2900
and DUU 1000 are available to
purchase as optional accessories.
Conversion kit DUU 1000 must be
connected to flat extractor ducting. Flat
extractor ducting and accessories are
available from retail outlets.
See the relevant installation
instructions for more information.
