Miele DAS 4920 Installation

12062340-01
Installation
*INSTALLATION*

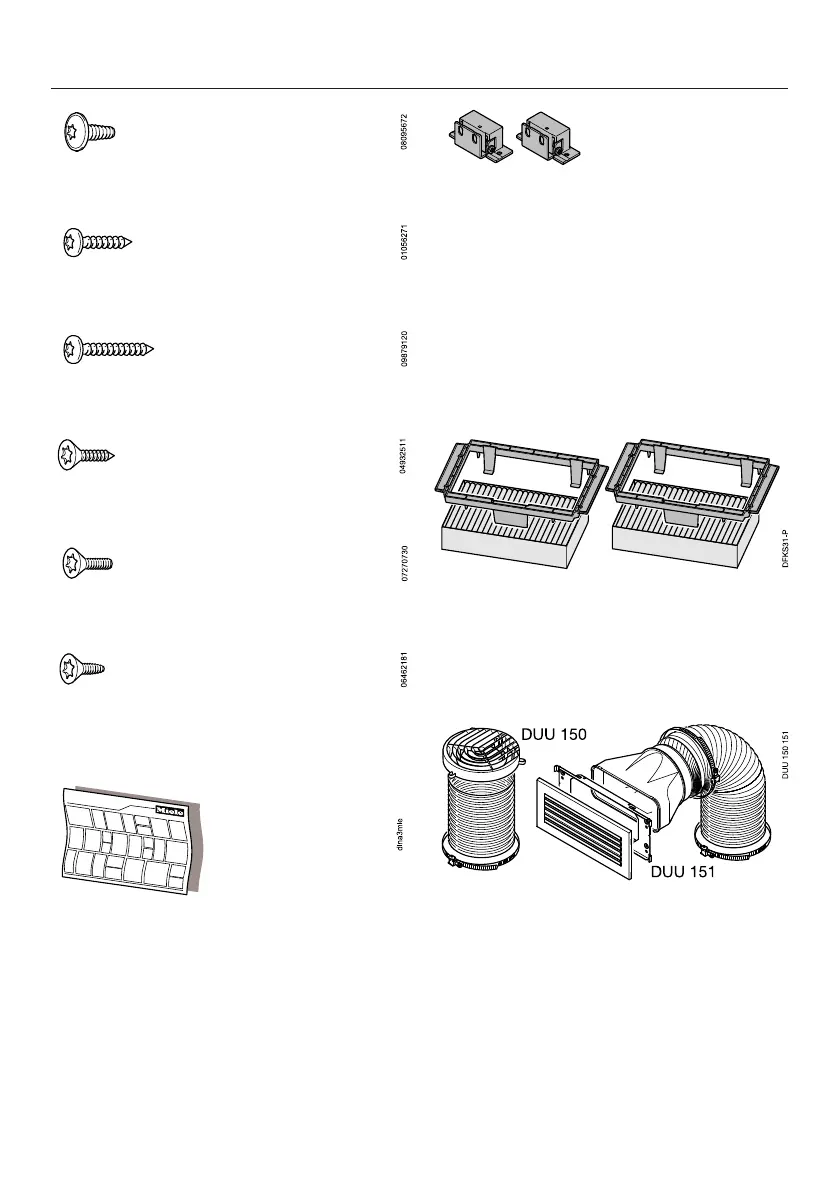

4screws, M4x8mm
4 (8)* screws, 4x15mm
4screws, 4x30mm
8 (12)* screws, 4x15mm
4screws, M4x12mm*
4screws, M4x8.5mm*
* For 896mm wide appliances
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
Installation plan
See the installation plan for details on
the individual steps involved in the
installation of this appliance.
11839970
DML2000 installation kit
for installing a hinged front panel to
match kitchen furniture units (not
supplied; available as an optional
accessory)
Installation materials for recirculation
mode
You need the following optional
accessories for recirculation mode:
DFKS31-x installation kit
contains 2holders and 2 charcoal
filters (DFKS31-P with single-use
charcoal filters or DFKS31-R with
reactivatable charcoal filters)
DUU15x installation kit
contains a directional unit socket, hose
and hose clips (DUU150 for the top of
the cabinet or DUU151 for the sides or
front of the cabinet)

Miele DAS 4920 Specifications

General

Pressure (Pa)	484
Intensive speed	Yes
Number of speeds	3
Type of extraction	Ducted/Recirculating
Noise level (low speed)	37 dB
Maximum extraction power	605 m³/h
Noise level (high speed)	55 dB
Noise level (medium speed)	47 dB
Maximum recirculating power	585 m³/h
Minimum distance from gas hob	650 mm
Noise level (intensive speed)	66 dB
Fluid dynamic efficiency class	A
Minimum distance from electric hob	450 mm
Current	10 A
Connected load	90 W
AC input voltage	230 V
AC input frequency	50 Hz
Energy efficiency scale	A+++ to D
Annual energy consumption	22.9 kWh
Bulb type	LED
Bulb power	3 W
Illuminance	300 lx
Number of bulbs	1 bulb(s)
Type	Built-in
Cord length	1.5 m
Product color	Stainless steel
Built-in display	-
Exhaust location	Top
Number of filters	1 pc(s)

Weight and Dimensions

Depth	273 mm
Width	896 mm
Weight	14000 g
Depth (max)	423 mm
Height (max)	436 mm
