Miele DAS 4920 Installation

12062340-01
Installation
*INSTALLATION*
Connection for air extraction
 If the cooker hood is used at the
same time as a heating appliance
that relies on oxygen from the same
room, there is a risk in certain
circumstances of toxic fumes
building up.
It is essential that the “Warning and
Safety” instructions are observed.
The cooker hood should be installed
according to local and national
building regulations. Seek approval
from the building inspector where
necessary.
Only use smooth pipes or flexible
exhaust ducting made from
approved non-flammable materials
for exhaust ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the exhaust ducting
must not be smaller than the cross-
section of the exhaust duct (see
“Appliance dimensions”). This applies
in particular when using flat ducting.
- The exhaust ducting should be as
short and straight as possible.
- Only use wide radius bends.
- The exhaust ducting must not be
kinked or compressed.
- All connections must be strong and
airtight.
- If the exhaust ducting has flaps,
these must be opened whenever the
cooker hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.

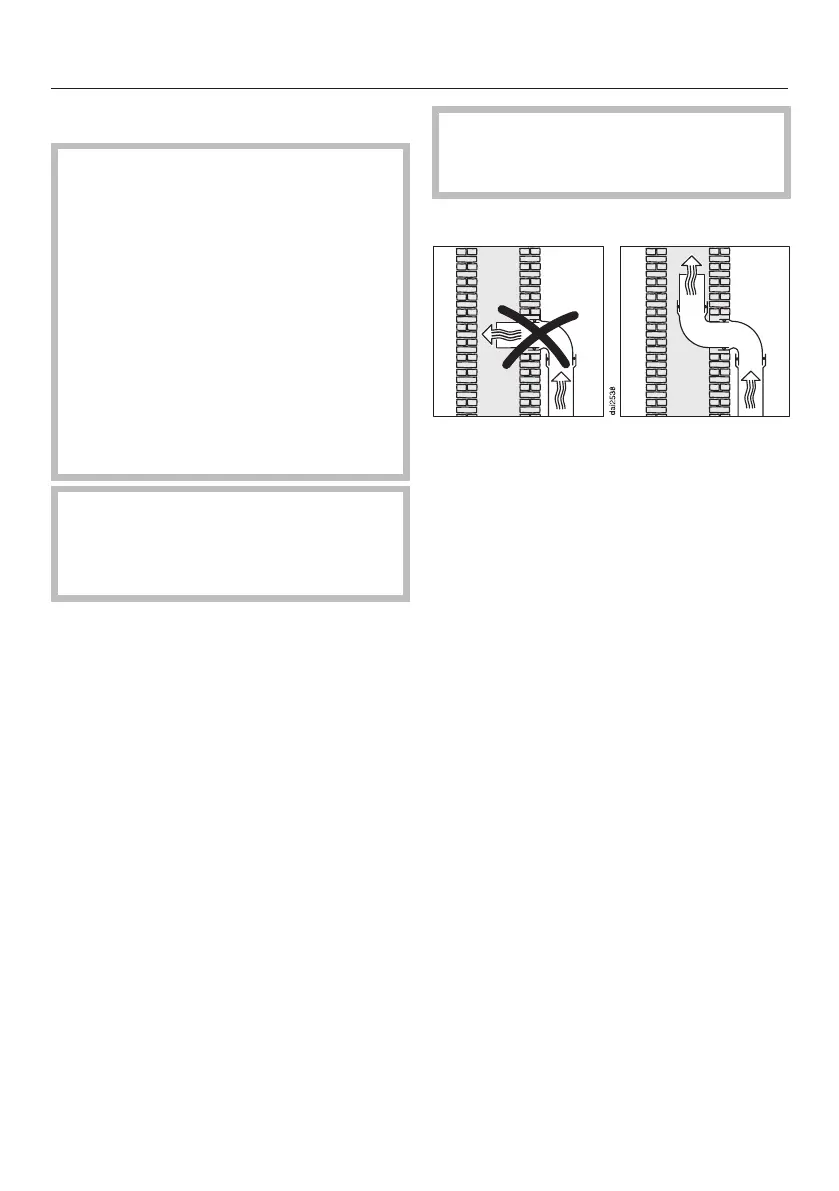

Flue
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.

Miele DAS 4920 Specifications

General

Pressure (Pa)	484
Intensive speed	Yes
Number of speeds	3
Type of extraction	Ducted/Recirculating
Noise level (low speed)	37 dB
Maximum extraction power	605 m³/h
Noise level (high speed)	55 dB
Noise level (medium speed)	47 dB
Maximum recirculating power	585 m³/h
Minimum distance from gas hob	650 mm
Noise level (intensive speed)	66 dB
Fluid dynamic efficiency class	A
Minimum distance from electric hob	450 mm
Current	10 A
Connected load	90 W
AC input voltage	230 V
AC input frequency	50 Hz
Energy efficiency scale	A+++ to D
Annual energy consumption	22.9 kWh
Bulb type	LED
Bulb power	3 W
Illuminance	300 lx
Number of bulbs	1 bulb(s)
Type	Built-in
Cord length	1.5 m
Product color	Stainless steel
Built-in display	-
Exhaust location	Top
Number of filters	1 pc(s)

Weight and Dimensions

Depth	273 mm
Width	896 mm
Weight	14000 g
Depth (max)	423 mm
Height (max)	436 mm
