Miele F 12010 S - Changing the door hinging

The appliance is supplied right hand
hinged. If left hand door hinging is
required, follow the instructions below.
^
Close the door.

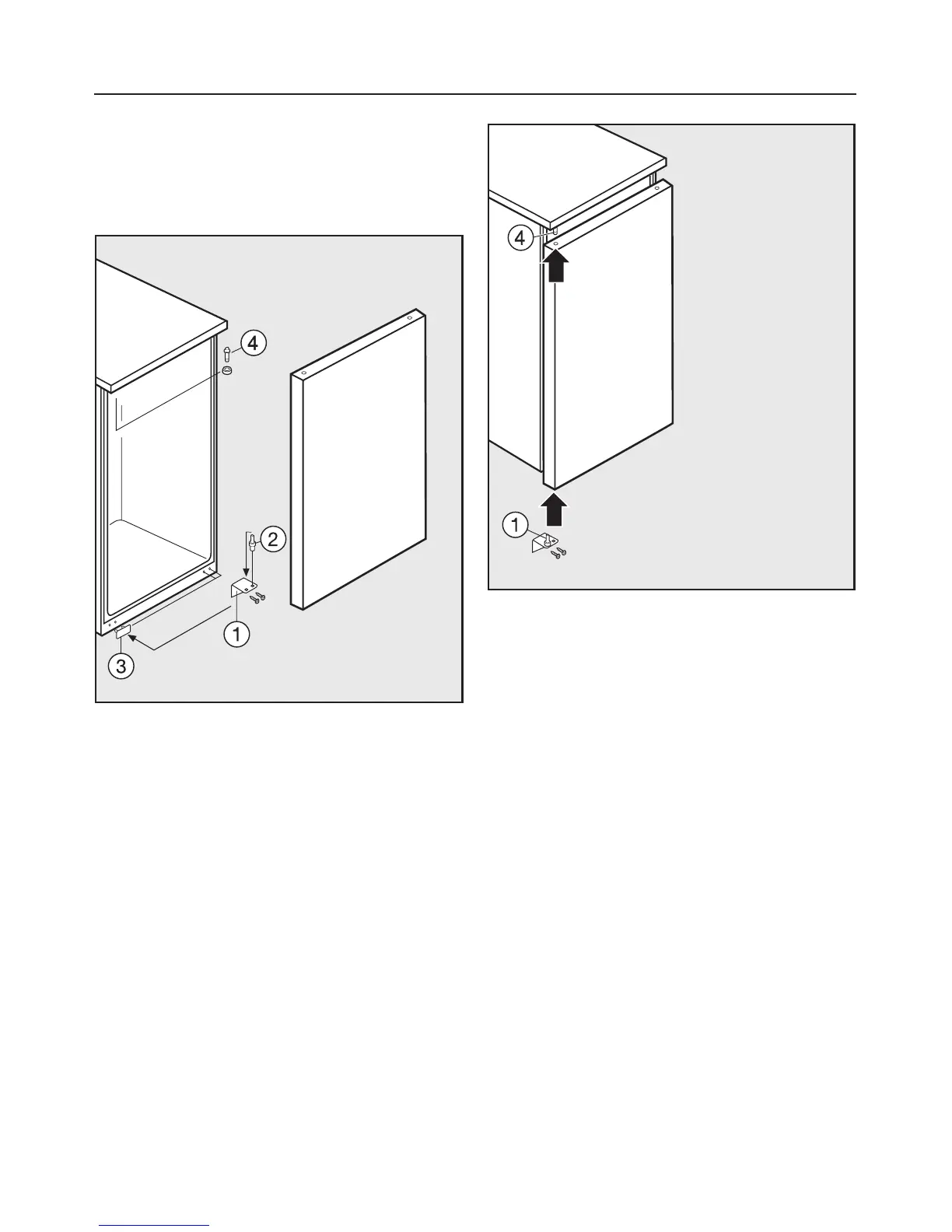

^ Unscrew lower hinge bracket a, and
remove.
^
Then lift the door down and off.
^
Take hinge pin b out of hinge
bracket a, then refit in the other hole
of the hinge bracket. (Use the
spanner supplied to unscrew and
refit the hinge pin).
^
Remove cover c and use it to cover
the now empty holes on the opposite
side.
^
Use the spanner supplied to unscrew
upper hinge pin d and refit it on the
other side.
^
Take care not to lose the washer.
^ Fit the appliance door onto upper
hinge pin d and then close the
appliance door.
^ Screw hinge bracket a into the lower
door bearing.
^
Use the long slots in the hinge
bracket to align the door. Make sure
you have tightened all screws
properly.
