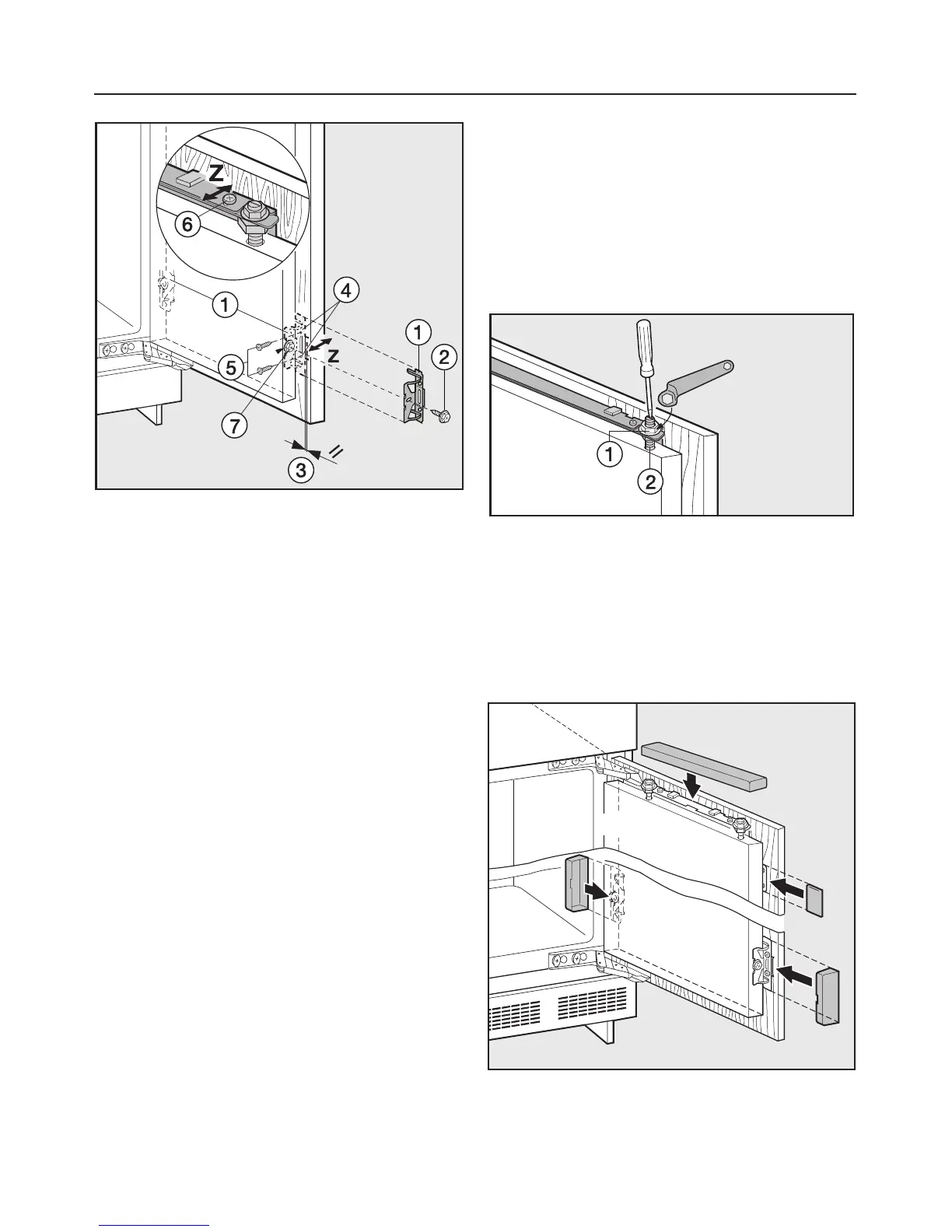

^ Securing the appliance door to the
furniture door:
– Secure bracket a to the appliance
door by screwing hexagon headed
screw b through the pre-drilled
holes in the appliance door.
– Check that the two metal edges c
are flush (see symbol II).
–
Drill fixing holes d and screw in the
short4x14mmchip board screws
e.
–
Align depth Z on the furniture door:
Loosen screws f at the top of the
appliance door and loosen the
hexagon headed screw g at the
bottom of the fixing bracket. By
moving the furniture door, create a
gap of 2 mm between the furniture
door and the front edge of the niche.
Close the door and align it with
neighbouring furniture doors.
–
(On large or divided doors attach a
second pair of fixing brackets a in
the handle region of the door. Use
the pre-drilled holes in the appliance
door.)
Securing the appliance
^ Whilst counterholding the adjusting
bolts b with a screwdriver, tighten
nuts a at the top of the appliance
door.
^ Tighten all screws.
^
Place all covers in position.
Installing the appliance
38
