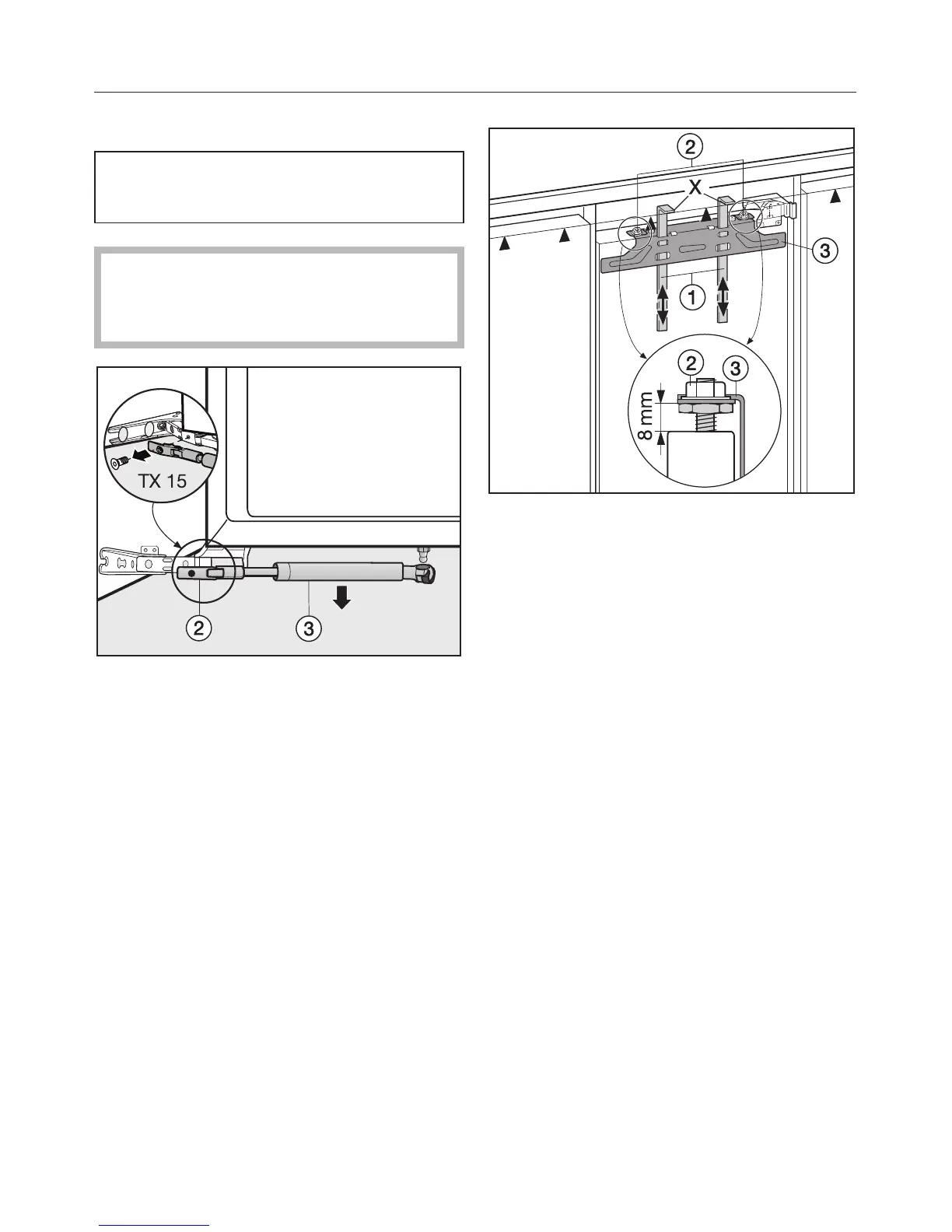

Fitting a furniture door
Ensure that the plinth facing is
replaced correctly.
Warning. The soft-close mechanism
snaps shut when dismantled.
Danger of injury.
^ Unscrew mounting b and pull
soft-close mechanism c downwards
to remove it.
^ A gap of 8 mm must be maintained
between the appliance door and the
fixing bracket.
^ Push fitting aids a up to the height of
the furniture door: the lower edge X
of the fitting aids must be at the same
height as the upper edge of the
furniture door being fitted (see - on
the diagram).
^
Undo nuts b, and take fixing bracket
c off together with the fitting aids.
Building in the appliance
46
