^ Loosen the screws b on the top and
bottom fixing brackets c.
^ Press the fixing brackets c against
the housing unit wall and tighten the
screws b.
^
Attach the fixing brackets c to the
housing unit side wall with the screws
d. Drill holes in the housing unit
walls if necessary.
^
Break off the protruding end of the
top cover e. Turn the cover around
and fit it on the top fixing bracket c.
^
Fit oblong cover f onto the top fixing
bracket c.
^
Break off the protruding end of the
bottom cover e. It is no longer
required.
^
Fit angled cover g onto the bottom
fixing bracket c.
^
Close the appliance door.

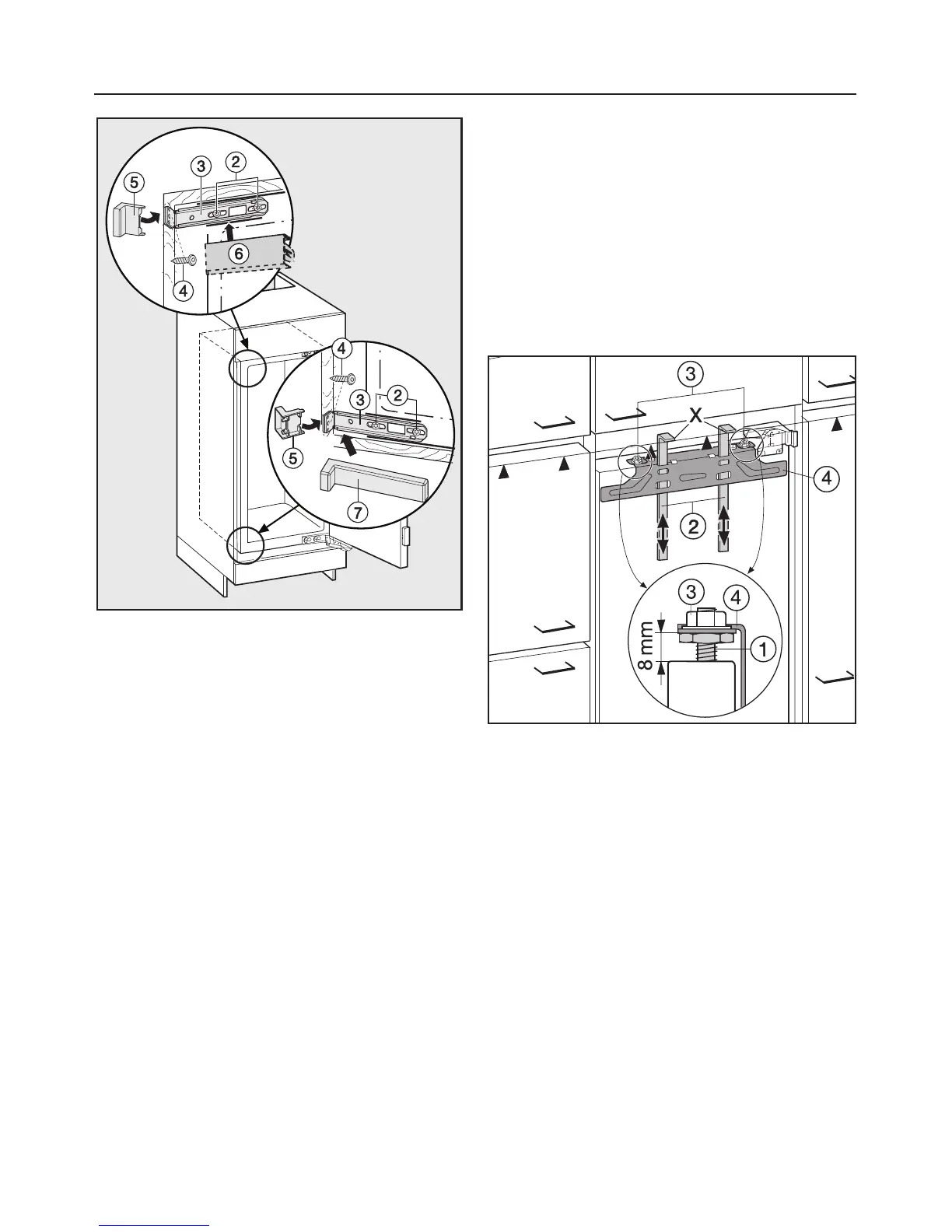

Fitting a furniture door
^
A gap of 8 mm a must be set
between the appliance door and the
central fixing bracket.
^
Push the fitting aids b up to the
height of the furniture door: the lower
edge X of the fitting aids must be at
the same height as the upper edge of
the furniture door being fitted (see -
on the diagram).
^
Undo the nuts c and take the fixing
bracket d off together with the fitting
aids.
Building in the appliance
44
