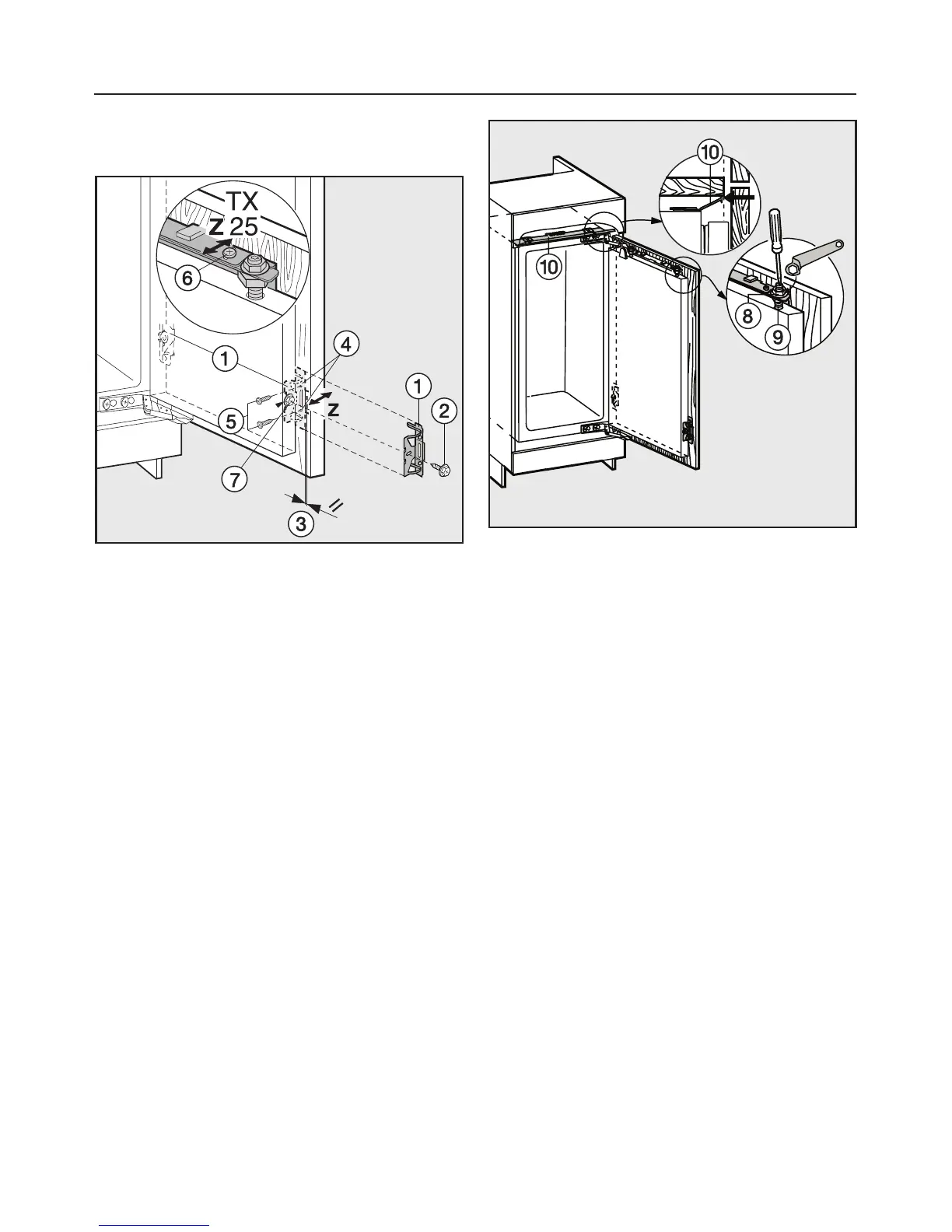

Securing the appliance door to the

furniture door:

^ Screw the fixing bracket a with a

hexagonal headed screw b into the

pre-drilled holes in the appliance

door.

Make sure the two metal edges c

are aligned (symbol II).

^ Drill fixing holes d, and screw in the

4 x 14 mm screws e.

(On large or divided doors, attach a

second pair of fixing brackets a in the

handle region of the door. Use the

pre-drilled holes in the appliance door.)

–

Align depth Z on the furniture door:

loosen screws f at the top of the

appliance door, and loosen the

screw g on the bottom of the fixing

bracket. By moving the furniture

doors, create a gap of 2 mm

between the furniture doors and the

front edge of the niche.

^ Close the door and align to match the

neighbouring furniture doors.

^ Whilst counterholding the adjusting

bolts i with a screwdriver, tighten

the nuts h on the appliance doors.

^ The cover strip j must not protrude,

and must be completely hidden in

the niche.

Tighten all screws again.

Building in the appliance

Miele FN 9752 i User Manual
