Miele G 349 Plus - Guide to the Appliance; Appliance Overview

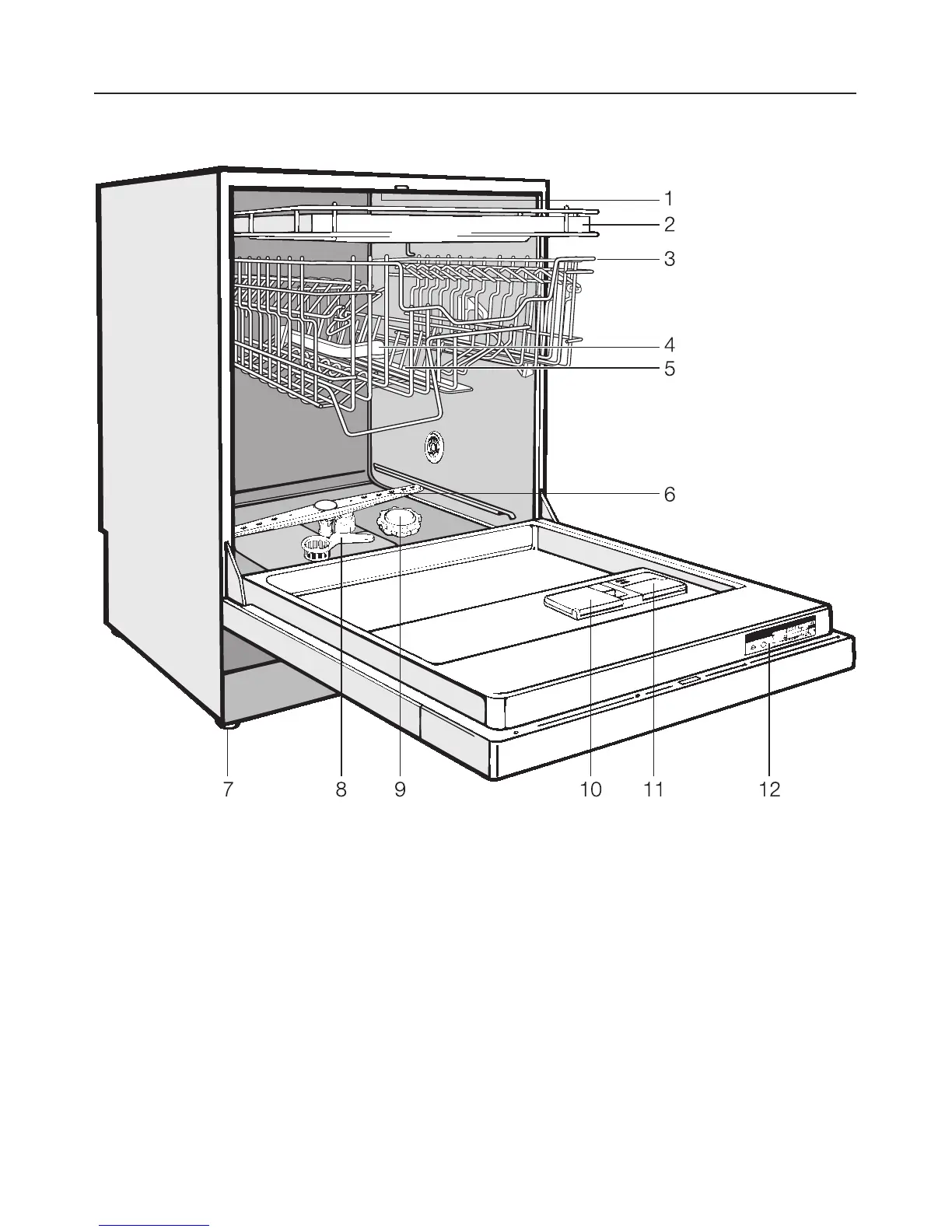

Appliance overview
1 Upper spray arm (not visible)
2 Cutlery tray
(depending on model)
3 Upper basket
4 Water feed for middle spray arm
5 Middle spray arm
6 Lower spray arm
7 Four height adjustable screw feet
8 Filter combination
9 Salt reservoir
10 Dual compartment detergent
dispenser
11 Rinse aid reservoir
(with dosage selector)
12 Data Plate
Guide to the appliance
4
