Dimension X must be calculated and
noted before attaching the fixing
bracket.

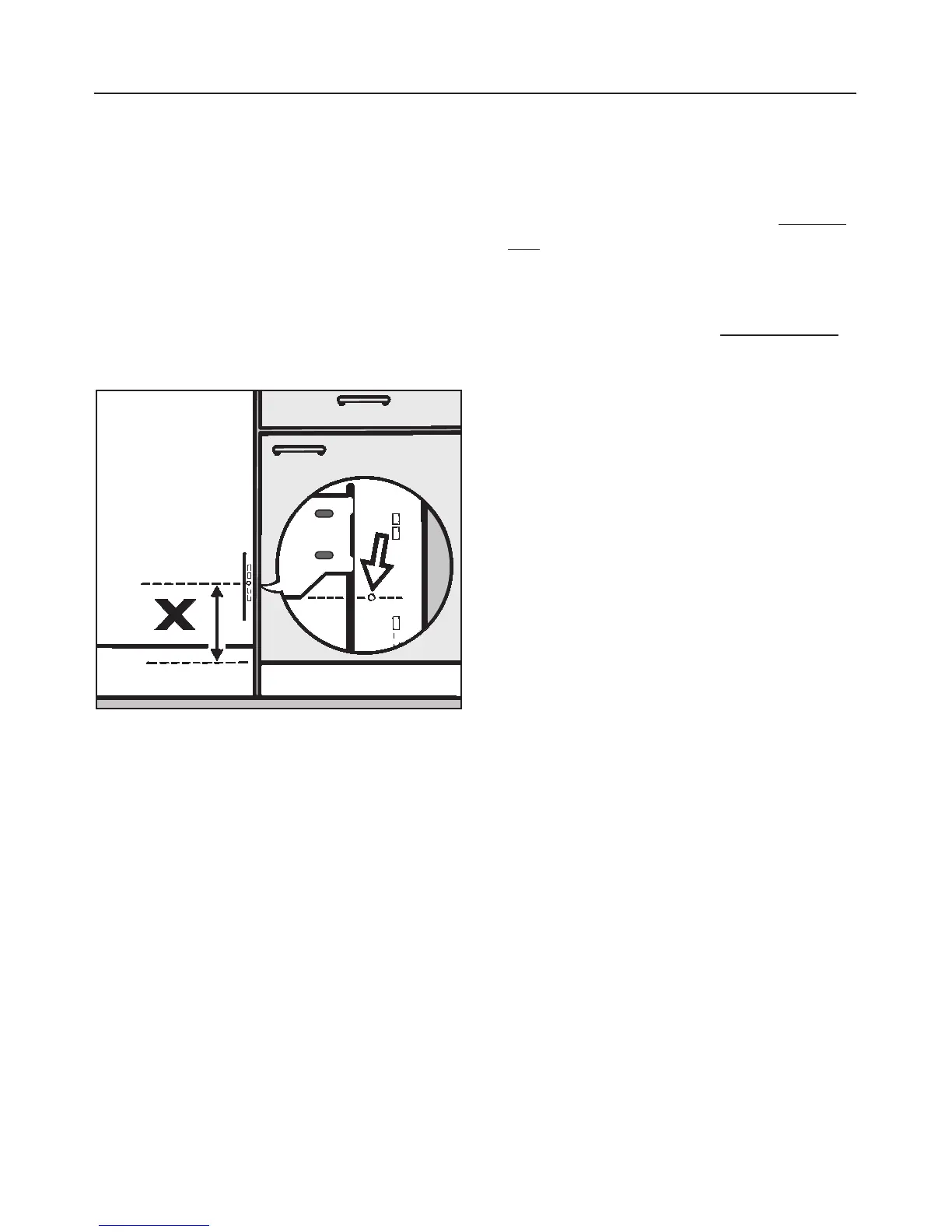

Dimension X is the distance shown on
the illustration between the drill hole in
the machine outer door panel and the
lower edge of the neighbouring unit
door.
^
Push the dishwasher into the recess
and adjust the height.
^
Calculate dimension X.
Fitting the fixing bracket to a door
front
^
Lay the door front down with the rear
side facing upwards. Draw a vertical
line down the middle of the door front
rear to use as a guide line.
^
Mark dimension X onto the rear of the
door front, up from the bottom edge
.
With two-piece panels:
If the two-piece panel is joined by
non-flush fixings these must be re
-
moved. The fixing bracket supplied with
the dishwasher can be used to secure
both pieces.
Make sure that the combined height
worked out is retained.
Installation
13
