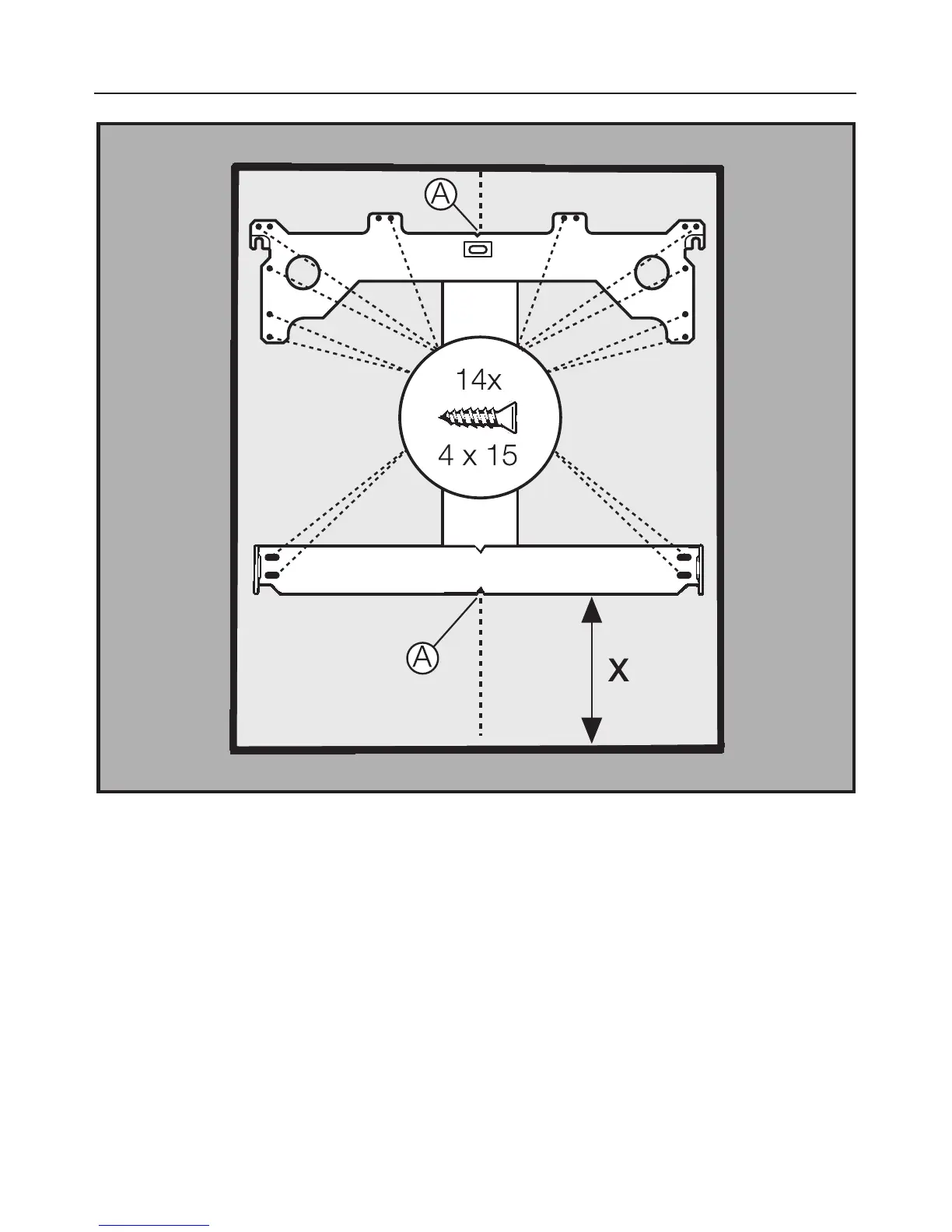

There are notches on the fixing bracket,
marked a in the illustration.
^
Lay the fixing bracket on the rear of
the door front, using dimension X for
the distance from the bottom, and so
that the notches marked a in the
middle of the fixing bracket align with
the vertical guide line, (see diagram).
^
If necessary pre-drill holes for the
screws (Ø 2.5 mm, approx. 10 mm
deep).
^
Screw the fixing bracket on securely.
Only one screw is required in each of
the four upper pairs of holes on the fix
-
ing bracket.
