Technical Information
52
G 600/G 800

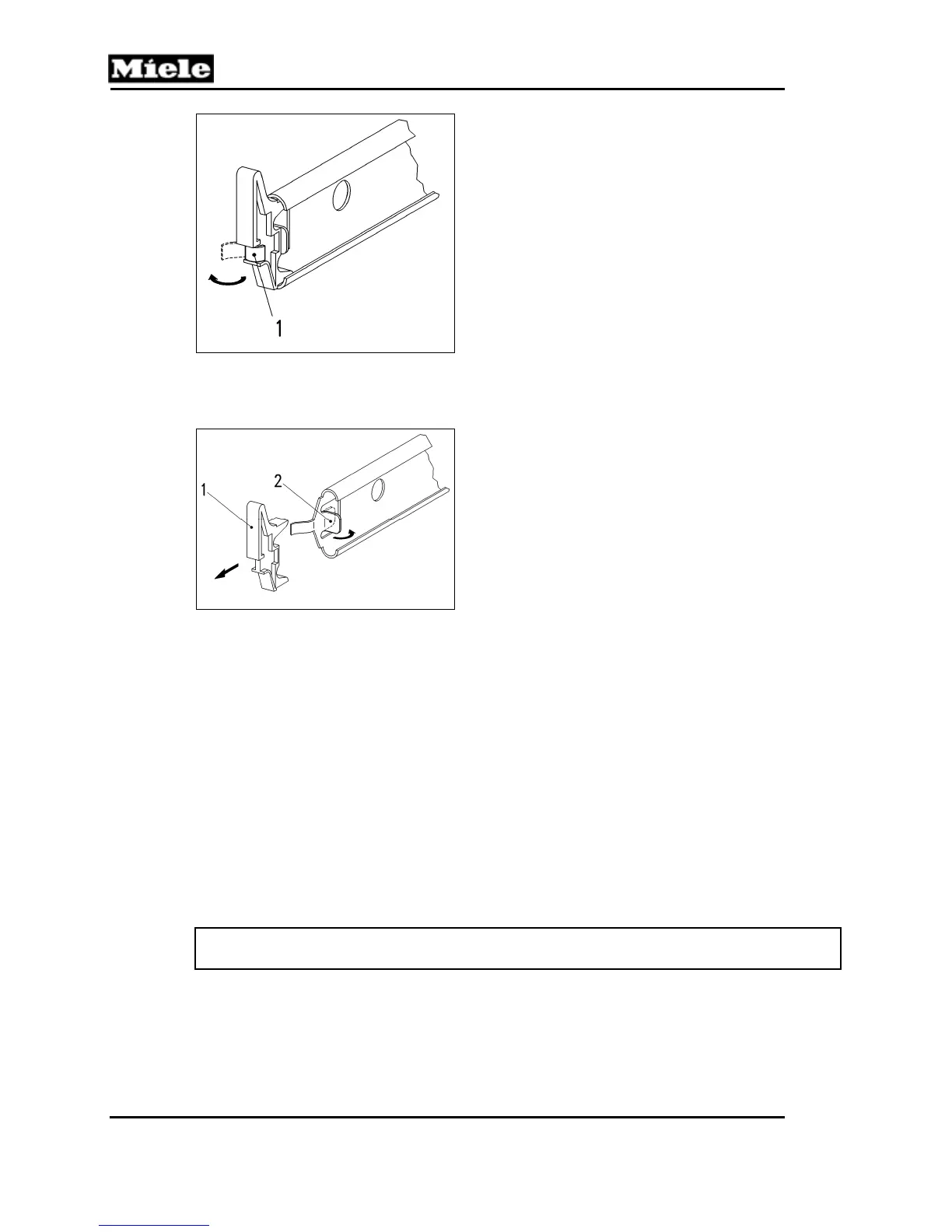

Figure 5-9: Basket Guide Stopper
7. Remove the rear stopper in the direction of the arrow (Figure 5-10, Item 1).
8. Bend the other holder tag in the direction of the arrow (Figure 5-10, Item 2).
Figure 5-10: Stopper Removal
9. Remove the old support rollers.
10. Slide the clips onto the new support rollers.
11. Insert 2 new support rollers in the basket guide.
12. Reinstall the stopper.
13. Bend the holder tags back into position.
14. Reinstall the clips on the 2 new support rollers. Align the rollers with the bolts.
Press the basket guide with the new support rollers firmly onto the bolts until the
rollers clip into place.
5.8 Removing the Combination Dispenser
1. Remove the door outer panel. See Section 5.10.
2. Disconnect all electrical connections and the hose (if equipped with a fan) from
the dispenser.
Note:
Plug connection leads are different lengths to help avoid incorrect connection.
3. Remove the raised-head screws (Figure 5-11, Item 1).
4. Release the retaining clips downwards in the direction of the arrow (see Figure 5-
11) and remove the dispenser assembly.
5. Install a new combination dispenser.
6. On models without a fan, install a stopper in the connection for the condensate
