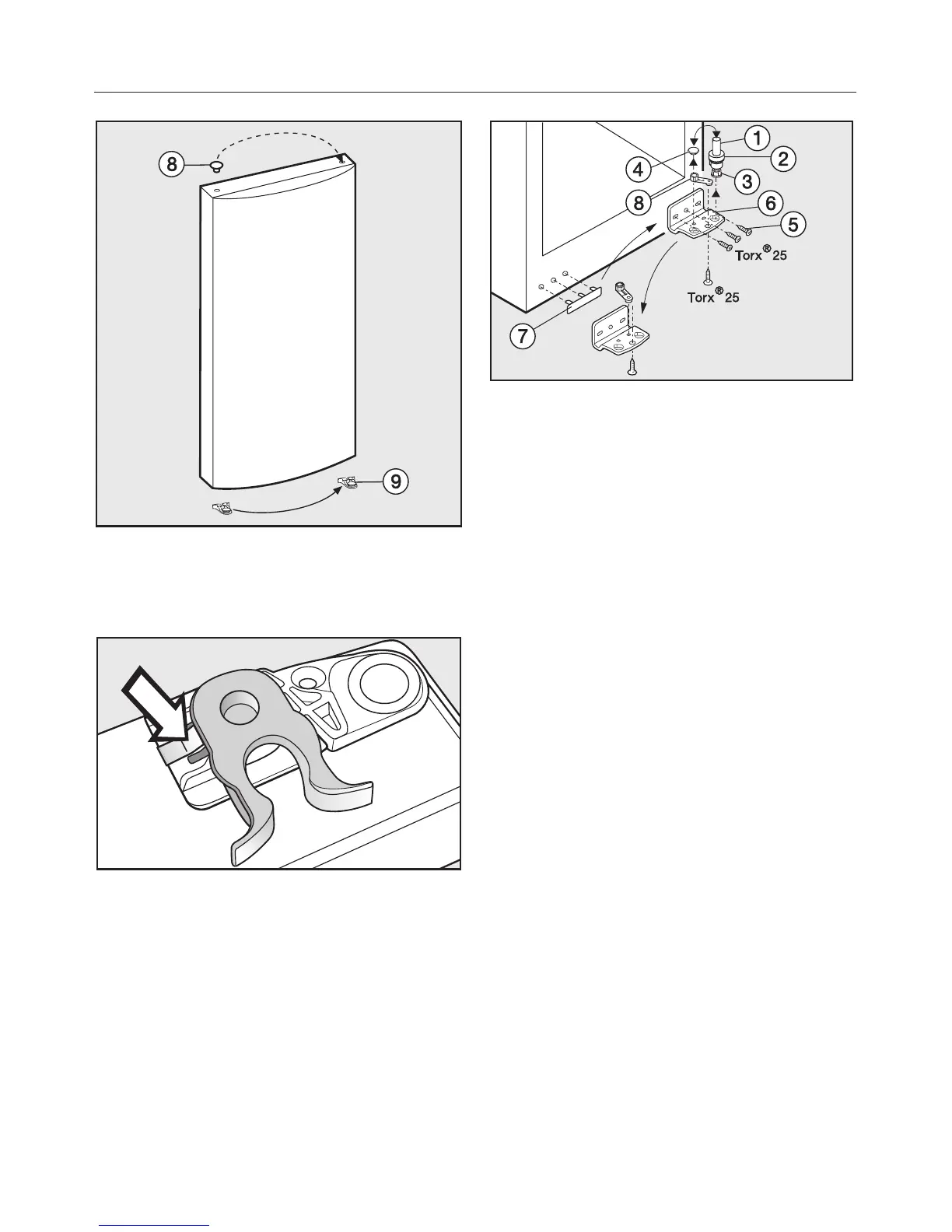

^ Remove cap h from the bearing
bush in the door and refit on the
opposite side.
^
Remove clamp i from underneath
the door and fit it on the opposite
side.
^
Pull hinge pin a with disc b and foot
c upwards to remove them.
^
Remove cover d.
^ Undo screws e and take hinge plate
f off.
^ Slightly loosen bearing screw h from
hinge plate f. Screw it into the hole
on the other side of hinge plate f
and then tighten the screw again.
^ Place cap d in the other hole.
^ Remove cover g and fit it into the
holes on the opposite side.
Changing the door hinging
40
