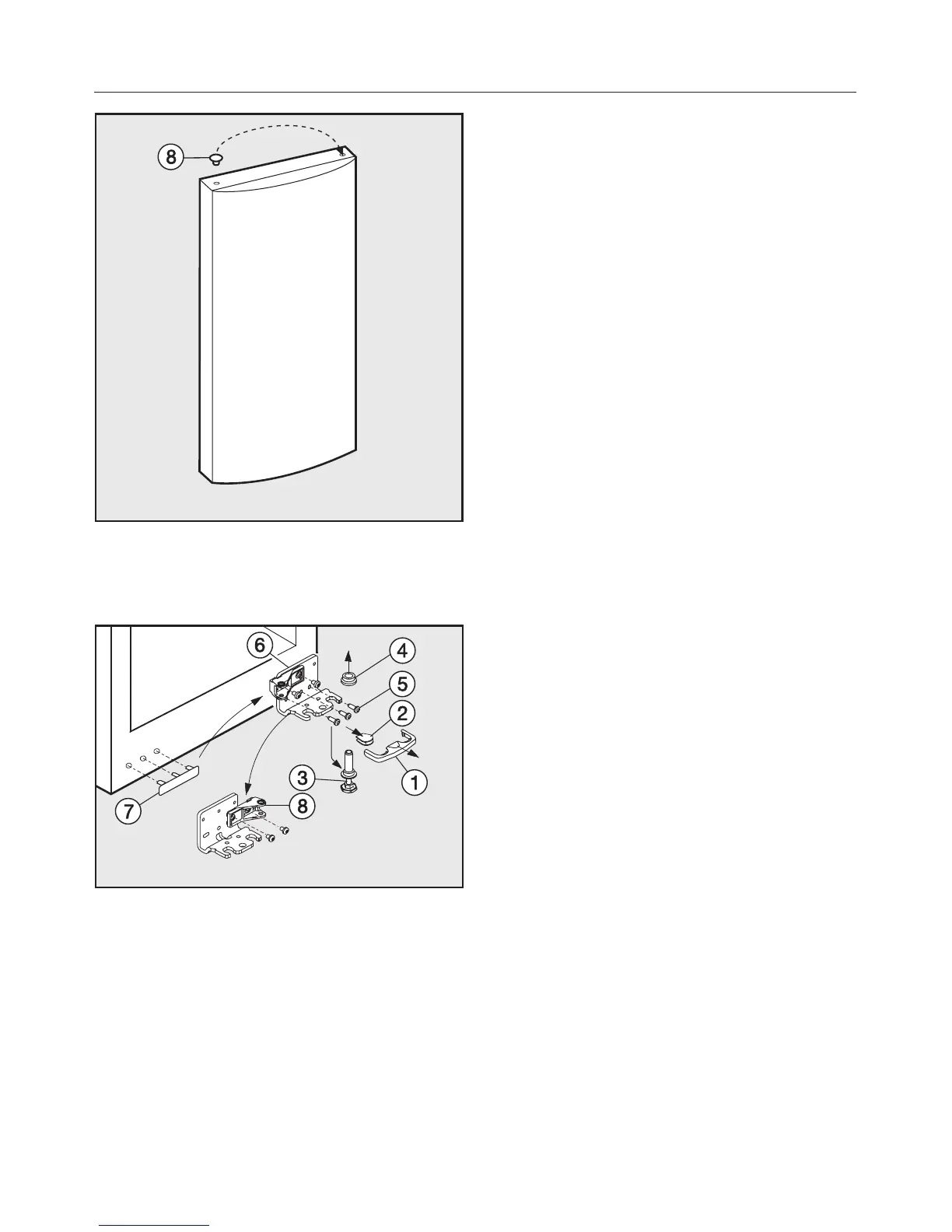

^ Remove cap h from the hinge bush
in the door and refit on the opposite
side.
^
Remove cover a by pulling it
forwards.
^
Pull cover b off.
^
Screw foot c into the hinge pin as far
as it will go.
^
With the help of another person,
carefully tip the appliance back and
pull hinge pin c downwards to
remove.
^
Take care not to lose hinge bush d.
^
Undo screws e and take hinge plate
f off.
^
Remove cover g and refit on the
opposite side.
^
Refit hinge plate f onto the other
side using the 2 outer screws. To
make it possible to align the door
later, do not replace the centre
screw at this stage.
^ Unscrew part h from hinge plate f,
rotate it by 180° and refit into the hole
on the opposite side of the hinge
plate.
^ Refit cover b on the opposite side.
^ With the help of another person,
carefully tip the appliance back and
refit hinge pin c into hinge plate f.
The notch at the bottom of the hinge
plate should face forwards.
^
Replace hinge bush d on hinge pin
c.
^
Refit cover a.
^
Place the door onto hinge pin c from
above.
^
Close the door.
Changing the door hinging
44
