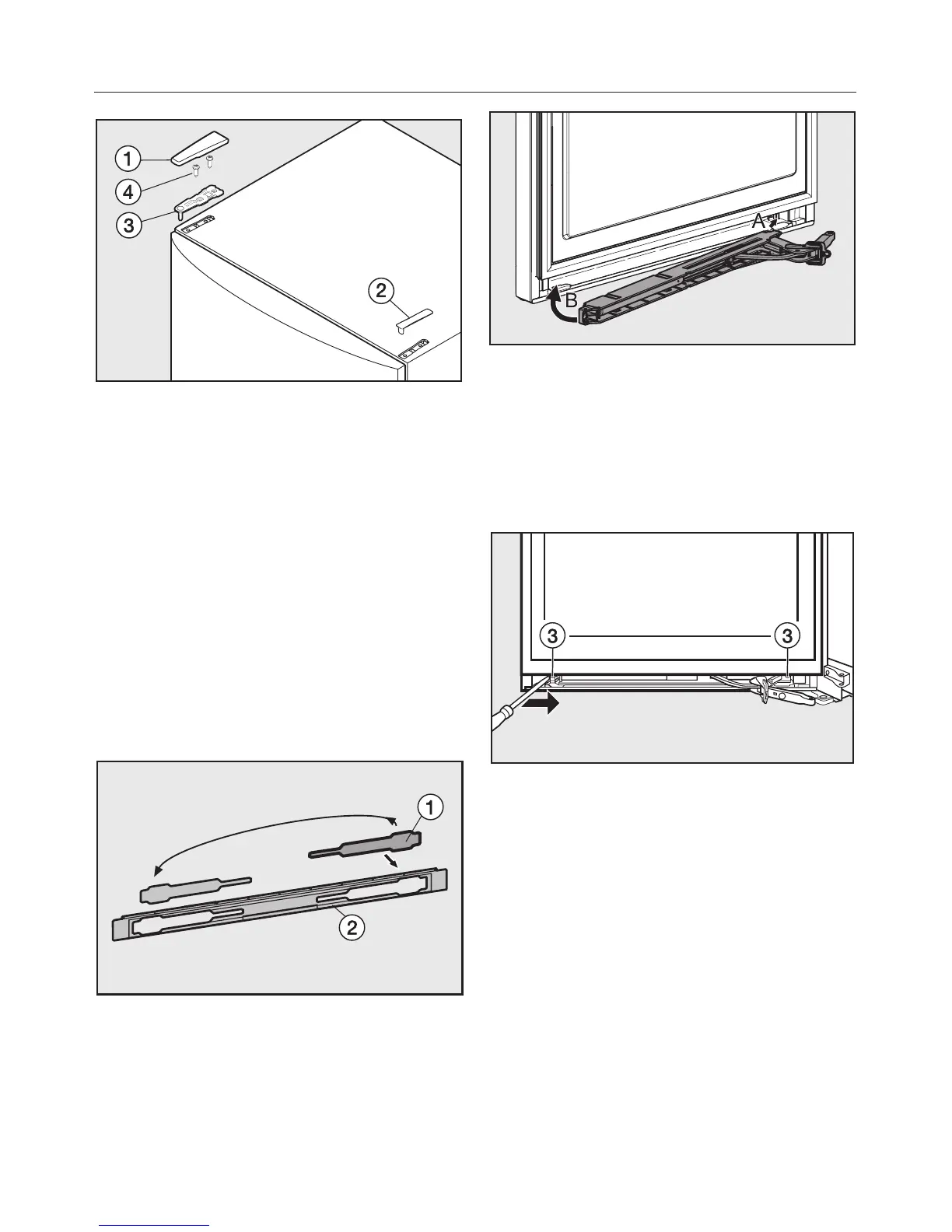

Fit hinge plate c onto the opposite
side and secure it with screws d.
If necessary drill a pilot hole for the
screws.
^ Fit covers a and b to their opposite
sides.
^ Align the door with the appliance
housing using the outer long slots in
the lower hinge plate. Then tighten
the screws.
Replacing the soft-close door
mechanism
^
Remove cover a from panel b,
rotate it by 180° and refit it on the
other side.
^
Insert the soft-close mechanism back
into the door, starting at the right
hand side.
^
Slide the soft-close mechanism back
into the door as far as it will go
towards the appliance using a
flat-headed screwdriver.
The screw holes on the left and right
must line up perfectly.
^
First screw the soft-close mechanism
onto the appliance side, then onto
the handle side c, pushing it firmly
towards the appliance.
Changing the door hinging
47
