en - Securing a side-by-side combination
7

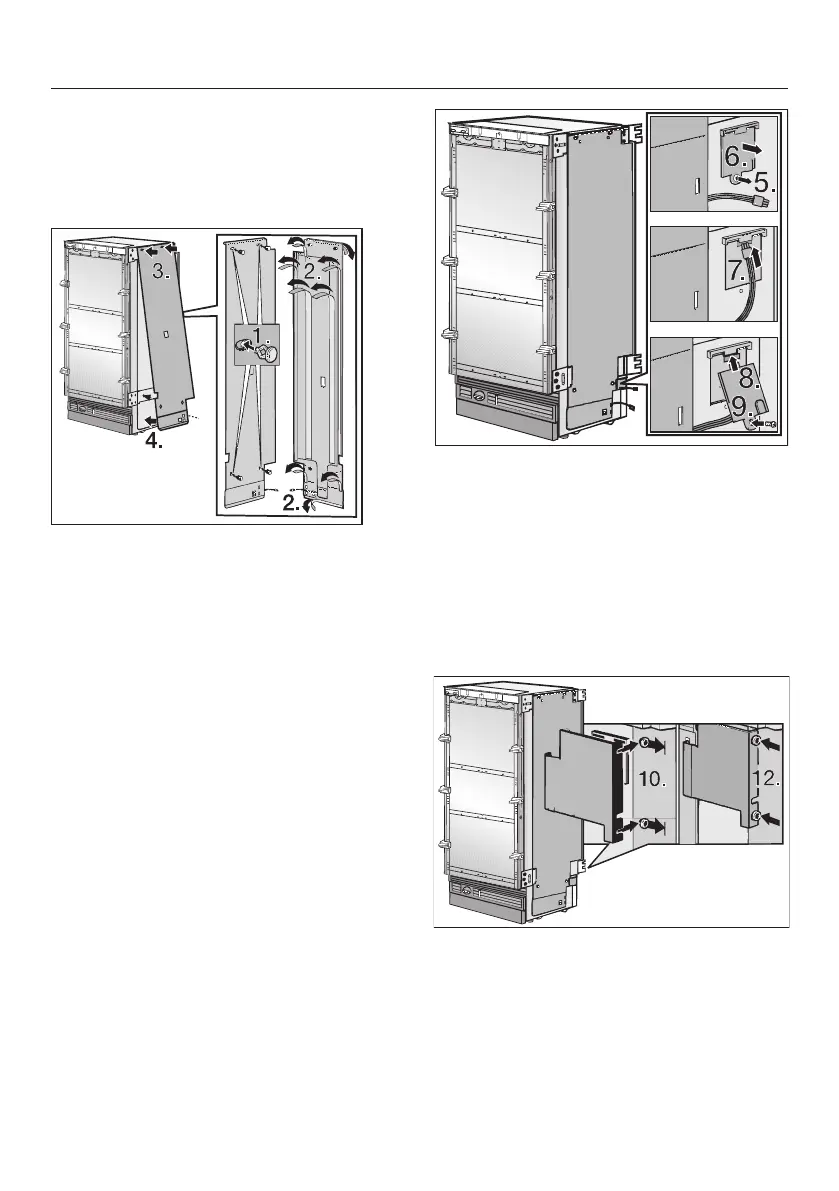

Installing the heating mat
The heating mat must be attached to
the right side of the appliance that is on
the left (when seen from the front).
Insert the pins into their respective
holes in the heating mat 1.).
Remove the protective strip from the
adhesive tape 2.).
Maintain a gap between the bottom
of the heating mat and the bottom of
the appliance, and insert the pins into
the holes at the top 3.).
Push the heating mat onto the appli-
ance from top to bottom and insert
the pins into the bottom holes 4.).
Loosen the screw on the plug cover
5.).
Remove the plug cover 6.).
Connect the power cord 7.).
Reinstall the plug cover 8.).
Tighten the screw on the plug cover
9.).
Slightly loosen the screws on the
back of the appliance 10.).
Push the supplied cord cover into the
slots of the side panel heater.
Hook the cord cover onto the screws
on the back of the appliance 11.).
Now tighten the screws 12.).
