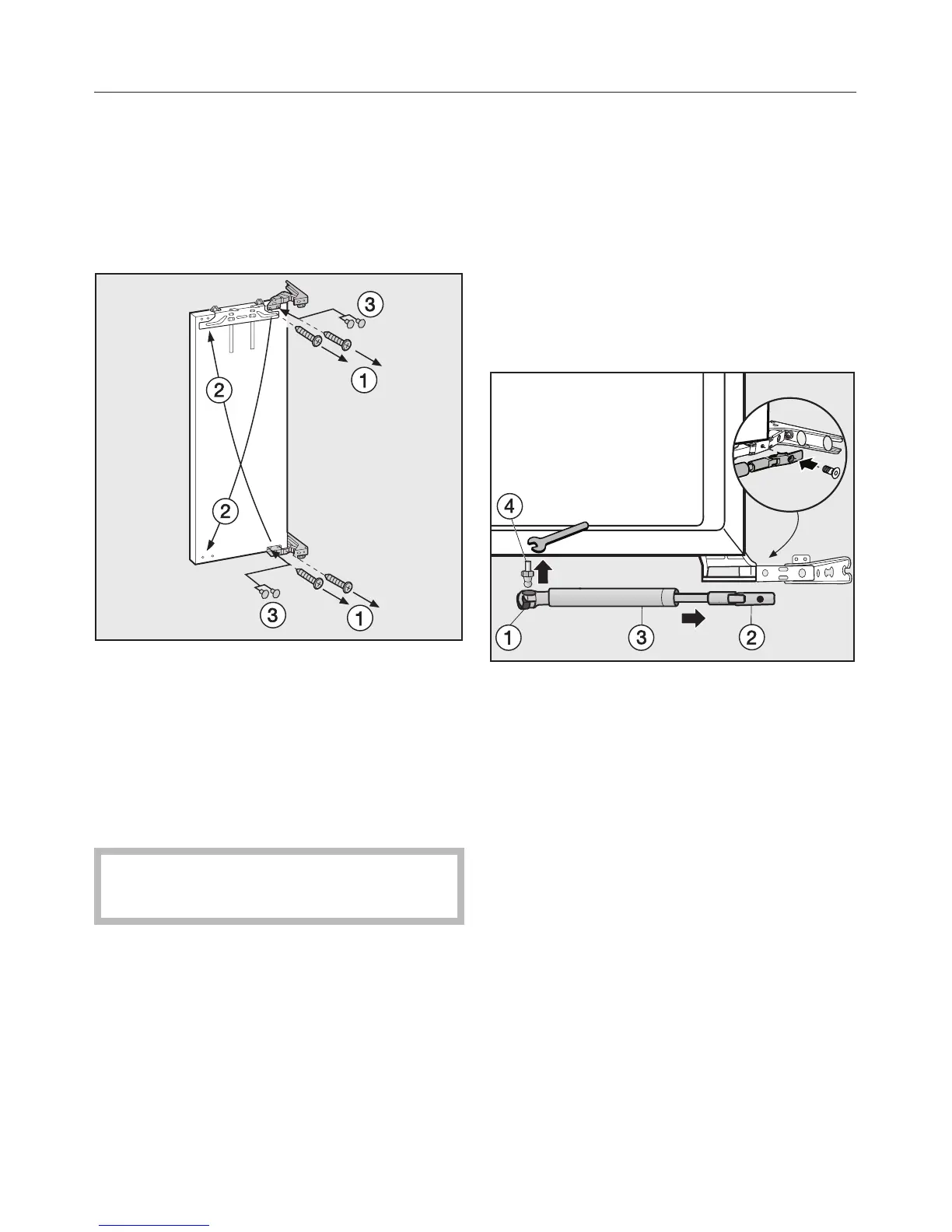

Unscrew mounting b and pull
soft-close mechanism c downwards
to remove it.
^
Undo ball joint d using a spanner
and remove it.
^ Stand the appliance door up, and
loosen the hinges at the front (the
hinges remain open).
^
Remove screws a, and use the
stoppers supplied c to plug the
empty holes.
Do not close up the hinges. Danger
of inury.
^
Replace the hinges in their diagonally
opposite corners b.
^
Use a powered screwdriver to secure
the hinges; screws a are
self-tapping.
To secure the soft-close mechanism
^
Place the door with the outer side
downwards on a stable surface.
^ Screw ball joint d of soft-close
mechanism c into the new fixing
holes.
^
Push tension spring a inwards
again.
^
Screw mounting b onto the hinge
and tighten securely.
^
Open out soft-close mechanism c
and hook it onto ball joint d.
Changing the door hinging
39
