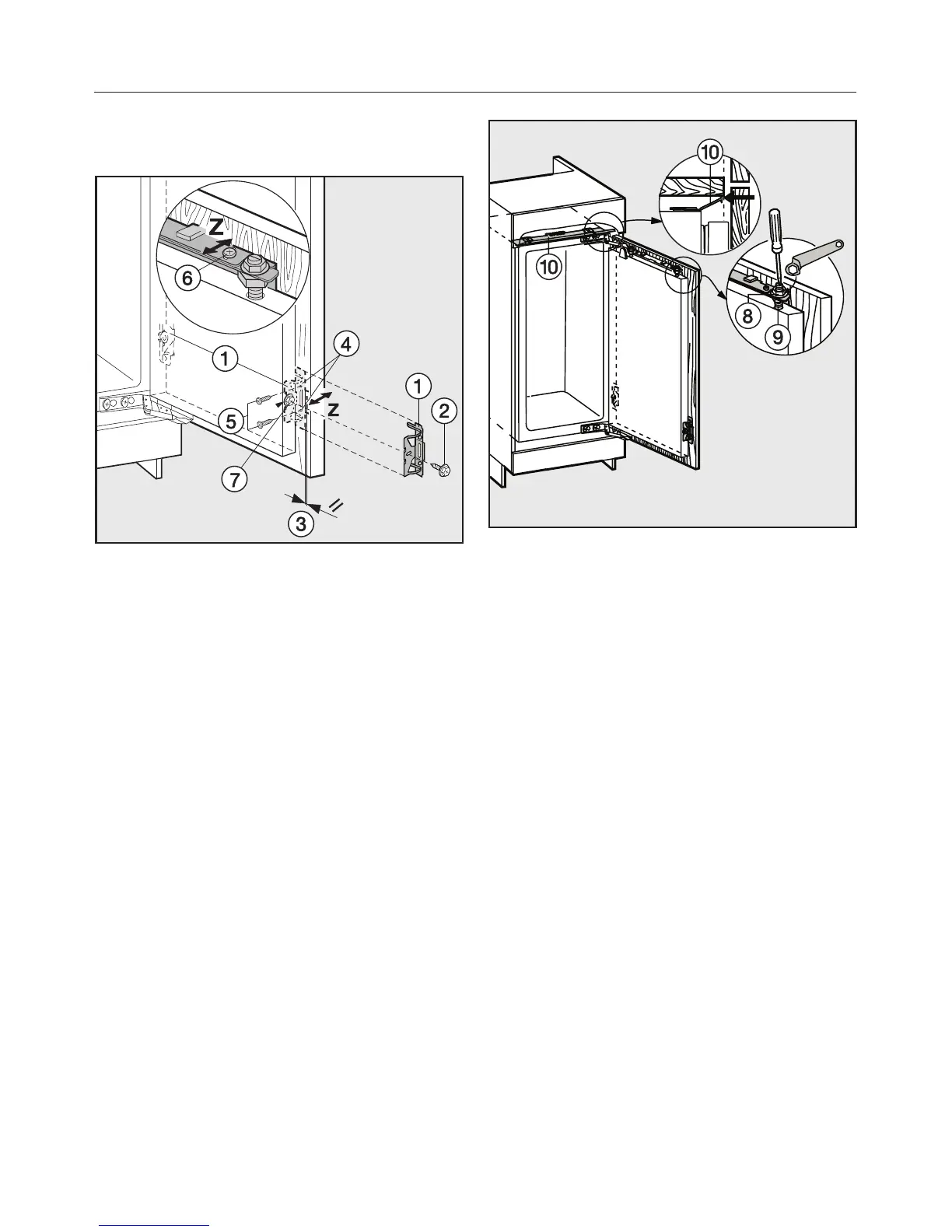

Securing the appliance door to the
furniture door:
^ Screw fixing bracket a into the
pre-drilled holes in the appliance
door using hexagonal screw b.
Make sure the two metal edges c
are aligned (Symbol II).
^ Drill fixing holes d in the furniture
door, and screw in4x14mmscrews
e.
(On large or divided doors, attach a
second pair of fixing brackets a in the
handle region of the door. Use the
pre-drilled holes in the appliance door.)
–
Align depth Z on the furniture door:
Loosen screws f at the top of the
appliance door, and loosen the
hexagon-headed screw g at the
bottom of the fixing bracket. By
moving the furniture doors, create a
gap of 2 mm between the furniture
doors and the front edge of the
niche.
^ Close the door and align it with
neighbouring furniture doors.
^ Whilst counterholding the adjusting
bolts i with a screwdriver, tighten
nuts h on the appliance door.
^ Cover strip j must be completely
hidden in the niche, and must not
protrude.
^
Tighten all screws again.
