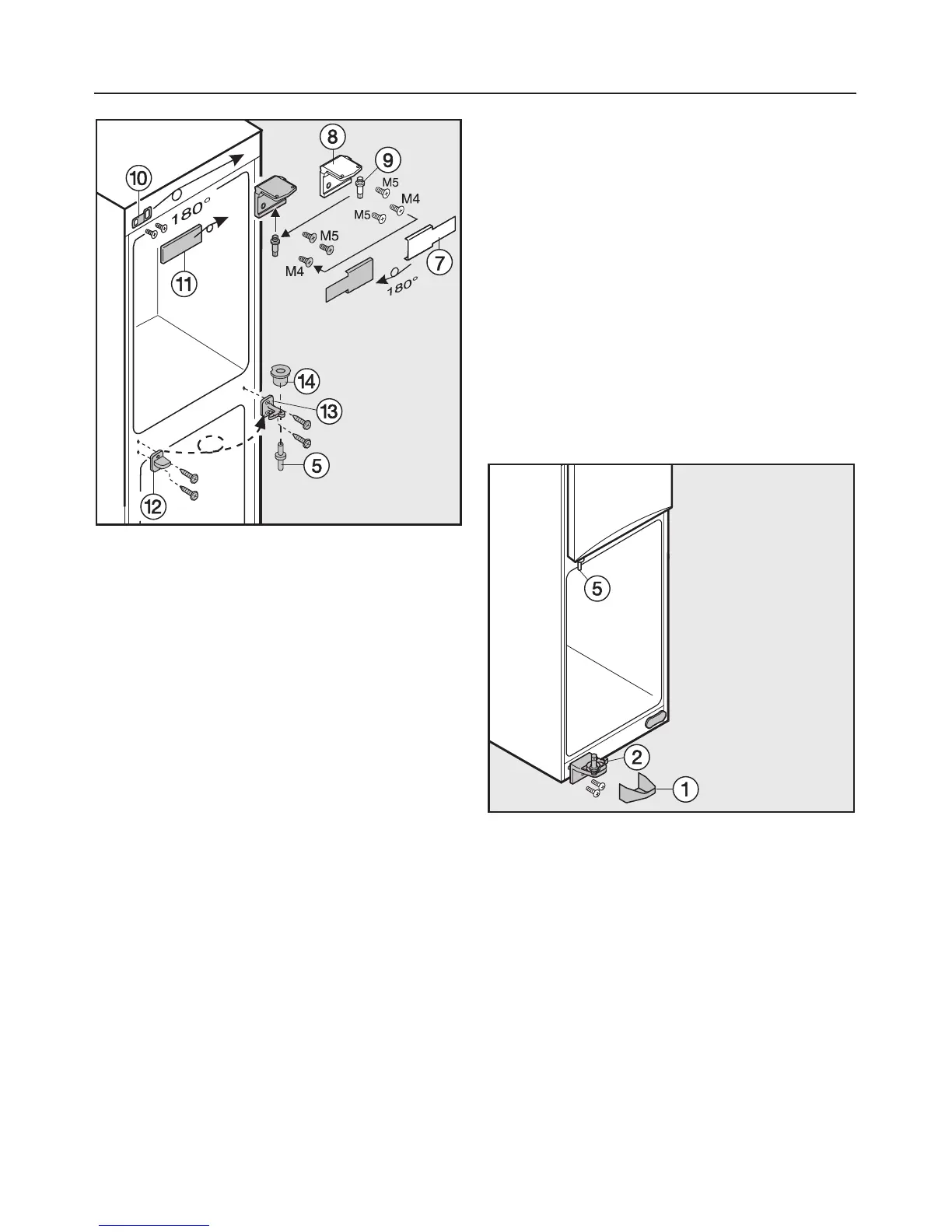

^ Remove cover g, and unscrew hinge
bracket h.
^ Fit hinge pin i in the second hole of
hinge bracket h.
^ Refit bracket j and cover k turned
through 180° on the opposite side.
^
Screw hinge bracket h into the
opposite side.
The M4 screw has to be screwed into
the left hole of the hinge bracket.
^
Turn cover g through 180°, and fit it
on the other side.
^
Exchange cover l in the middle of
the appliance with bracket m. To do
this:
Unscrew cover l and bracket m,
turn them around and screw in on the
opposite side.
^
Pull bearing bush n downwards out
of hinge bracket m and refit it from
above into the bracket.
^
Remove the plugs from the door
bearing bushes in the top of the
doors and refit on the opposite side.
^
Hang the upper appliance door on
hinge pin i and close the appliance
door.
^
Push middle pin e from below
through bracket m into the upper
appliance door.
^
Check that the upper door is
correctly aligned. If necessary, align
it using the long slots in bracket m.
^
Hang the lower door on pin e and
then close the appliance door.
^
Fit lower hinge bracket b in the door
bearing bush of the lower door. Then
screw it securely to the housing.
^
Refit cover a.
Changing the door hinging
