Pull the protective strip off of the
adhesive tape b.
^
Insert the pins into the upper holes,
while keeping the heating mat away
from the bottom of the appliance c.
^
Press on the heating mat from top to
bottom, and insert the lower pins into
the holes d.

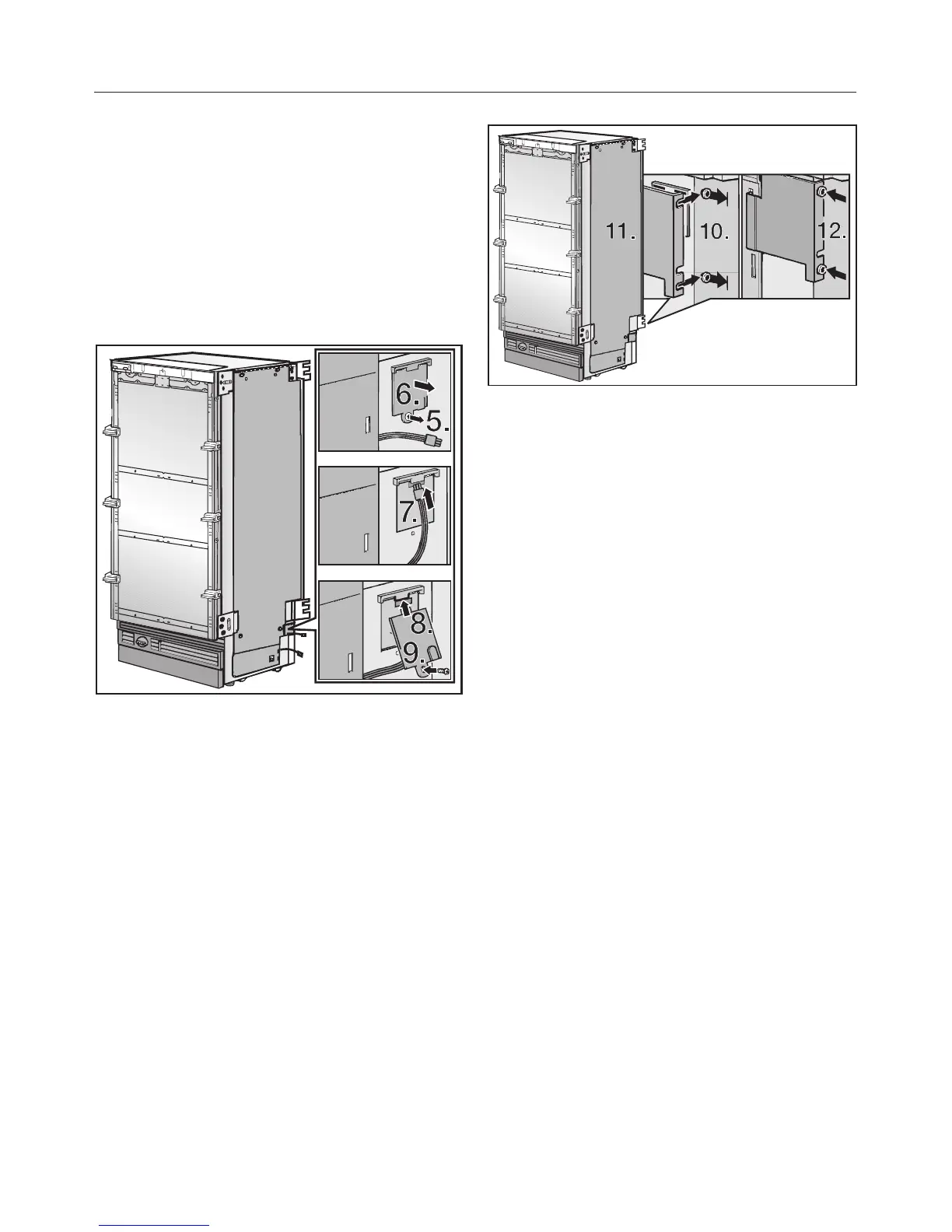

^ Loosen the screws from the
connection box e.
^
Open the connection box f.
^
Attach the cable g.
^
Close the connection box lid h.
^
Secure the connection box screws
i.
^
Loosen the screws on the rear side of
the appliance j. Do not unscrew
completely.
^ Hang the cable cover by its hinge on
the heating mat and, from below,
push into the screws k.
^ Tighten the screws l.
en
6
