KM 400 / KM 400-3 / KM 408-1 /
KM 408-2 / KM 412
a Spring clamps
b Protective shelf
(KM 408-1 / KM 408-2 only)
A protective shelf and a front panel
must be fitted underneath KM 408-1
and KM 408-2 to ensure that the
underside of the appliance is not
accessible after installation.
~
Ensure that the connection cable
cannot come into contact with the
underside of the appliance.
~

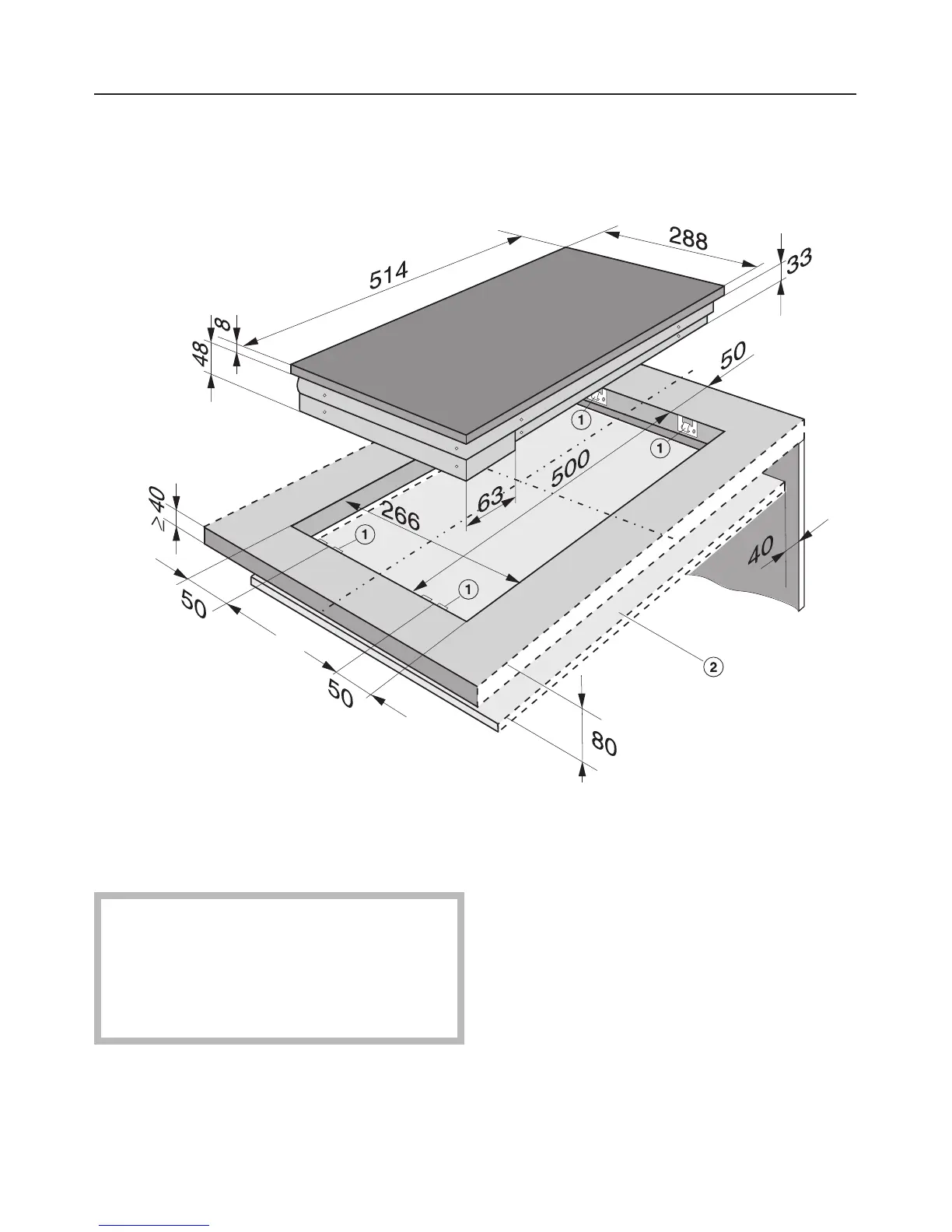

A minimum distance of 80 mm is
required between the upper surface of
the worktop and the protective shelf
~
A gap of 40 mm must be maintained
between the shelf and the rear wall.
Appliance dimensions
6
