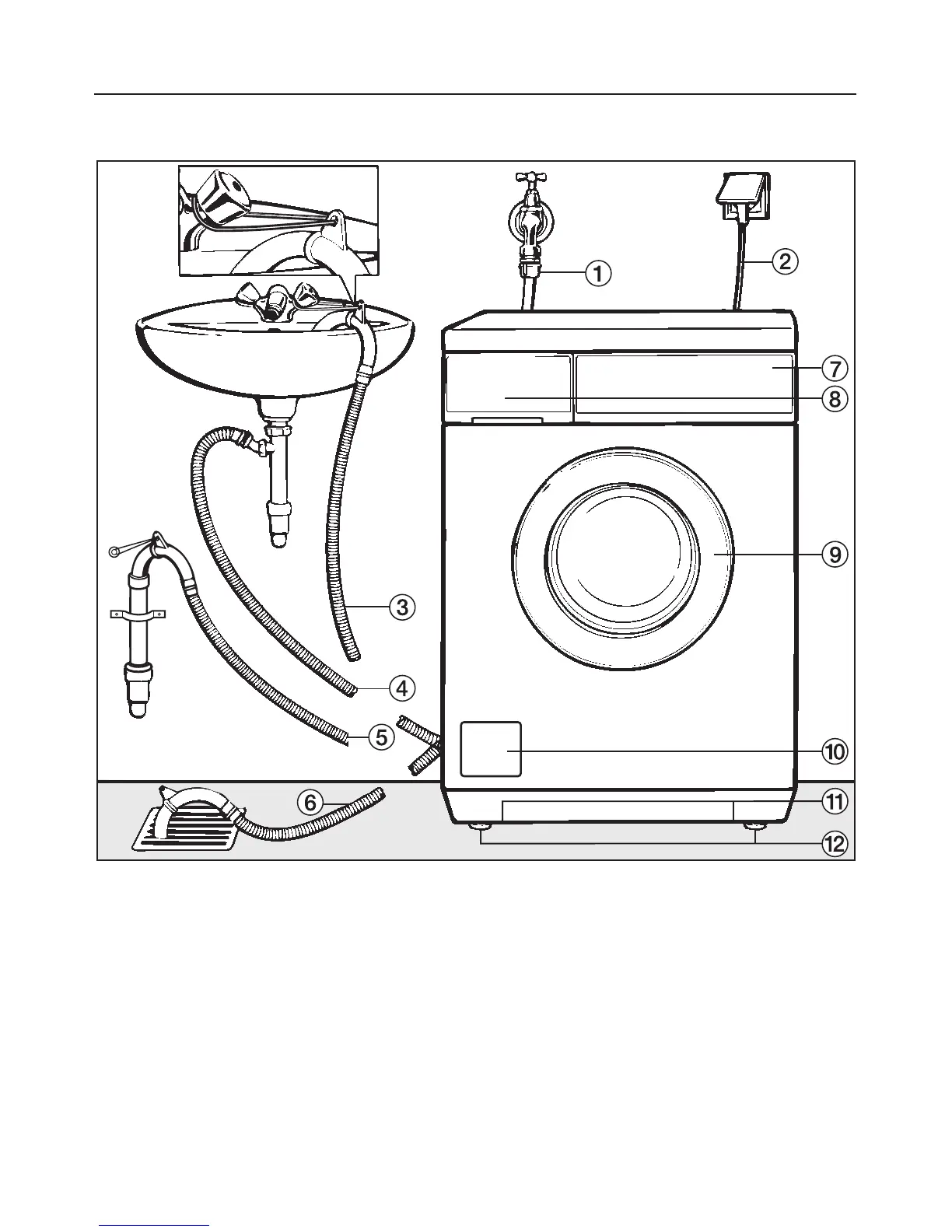

Front view
a Inlet hose (tested to withstand
pressure of at least 7,000 kPa)
b Electricity supply cable
c - f Flexible drain hose (with
detachable swivel elbow)
g Control panel
h Detergent dispenser drawer
i Drum door
j Access to drain filter, drain pump
and emergency release
k Handle recesses for moving the
machine
l Four height adjustable feet
Installation and connection
45
