Venting systems overview
The various venting systems which are
possible (a b c) are described on
the following pages.

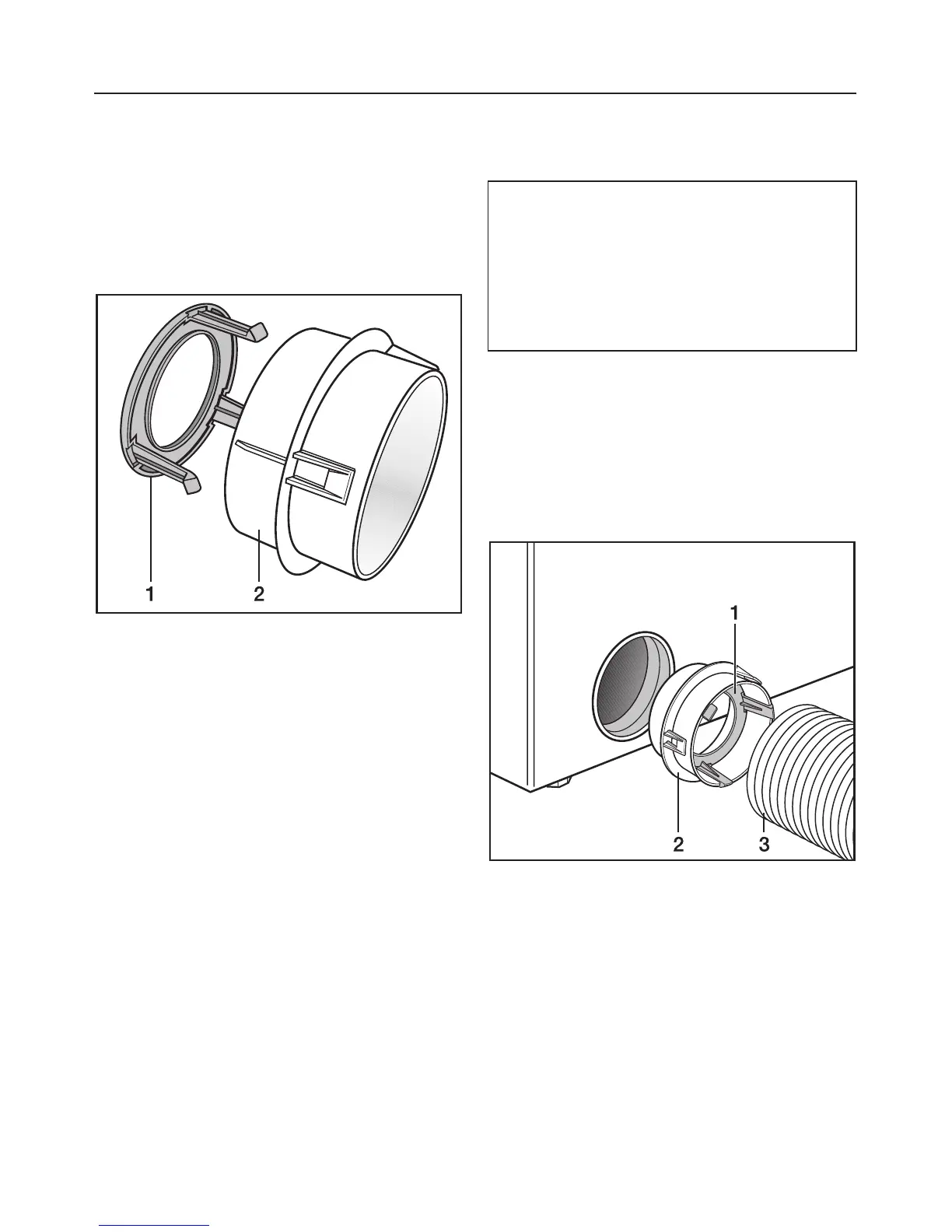

Adapter
A ring adapter** (1) is installed in
adapter (2) for the installation of a
flexible vent duct. It reduces time and
energy requirements during drying
when used in combination with a short
vent duct (maximum 10 m total
length). The ring adapter is removable
and designed for use with all venting
systems.
** Note for test institutes: EN 61121 Standard
testing is carried out with the ring adapter.
a Venting system with flexible
ducting hose
This is a simple, cost effective
method of directing the moist air
outside. The adapter supplied is
fitted into the vent opening on the
dryer and the ducting hose is then
connected to the adapter.
The following items are required:
–
flexible ducting hose*.
–
a wall vent kit* or window vent kit*.
* Available as an optional accessory from your
Miele dealer or the Miele Spare Parts
Department.
^
Ring adapter (1) must be taken out of
adapter (2), if the total duct length is
longer than 10 m.
If the total duct length is less than 10
m the ring adapter should be left in
the adapter.
^
Fit adapter (2) into the vent opening
on the dryer, and connect vent hose
(3).
^
See next page for examples.
