Moist air can be ducted outside by a
wall vent kit or window vent kit, both of
which are available from the Miele
Spare Parts Department.

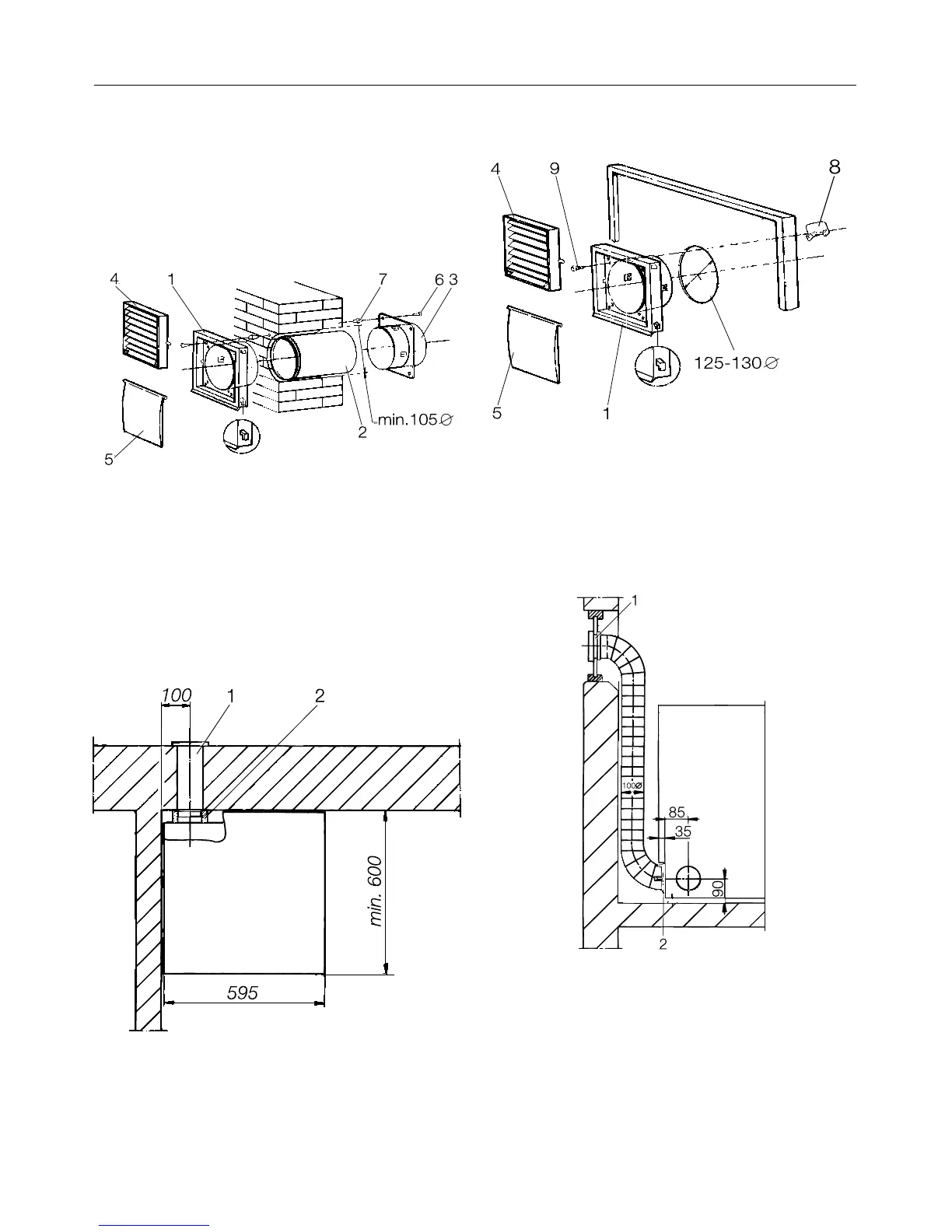

Example: Wall vent kit
1. Louvre frame
2. Wall pipe
3. Connecting piece
4. Louvred grille
5. Flap
6. Wood screw
7. Wall plug
View of appliance from above:
1. Wall pipe
2. Flexible foam gasket
A flexible foam gasket must be used if the dryer
is directly connected to the wall vent.
Example: Window vent kit
1. Louvre frame
4. Grille
5. Flap
8. Clips (x4)
9. Raised head screws (x4)
Side view of appliance:
1. Window vent kit
2. Adapter for flexible hose
The window vent kit fitted in a “plexiglass” pane.
If using an existing pane, cut out a hole with a
diameter of 125 mm.
Installation - venting
