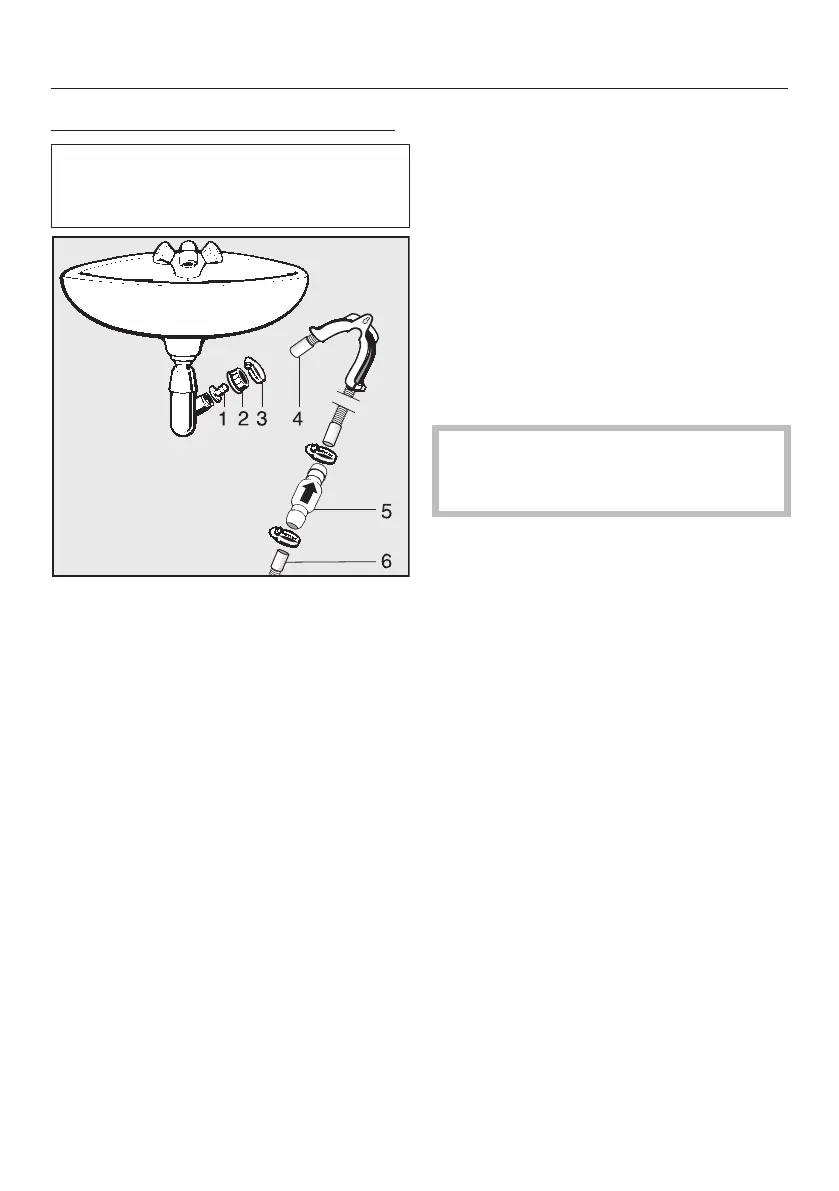

Direct connection to a sink drain outlet
Use the hose holder, the adapter, the
hose clips and the non-return valve
(available to purchase).
1. Adapter
2. Nut
3. Hose clip
4. End of the hose (secured with the
hose holder)
5. Non-return valve
6. Tumble dryer drain hose
Fit adapter 1 to the sink drain outlet
using nut 2.
The nut is usually fitted with a washer
which must be removed.
Attach the end of the hose 4 to ad-
apter 1.
Use the hose holder.
Use a screwdriver to tighten hose clip
3 up close to the nut.
Fit non-return valve 5 to tumble dryer
drain hose 6.
Non-return valve 5 has to be fitted so
that the arrow points in the direction
of flow (i.e. towards the sink).
Secure the non-return valve using
hose clips.
