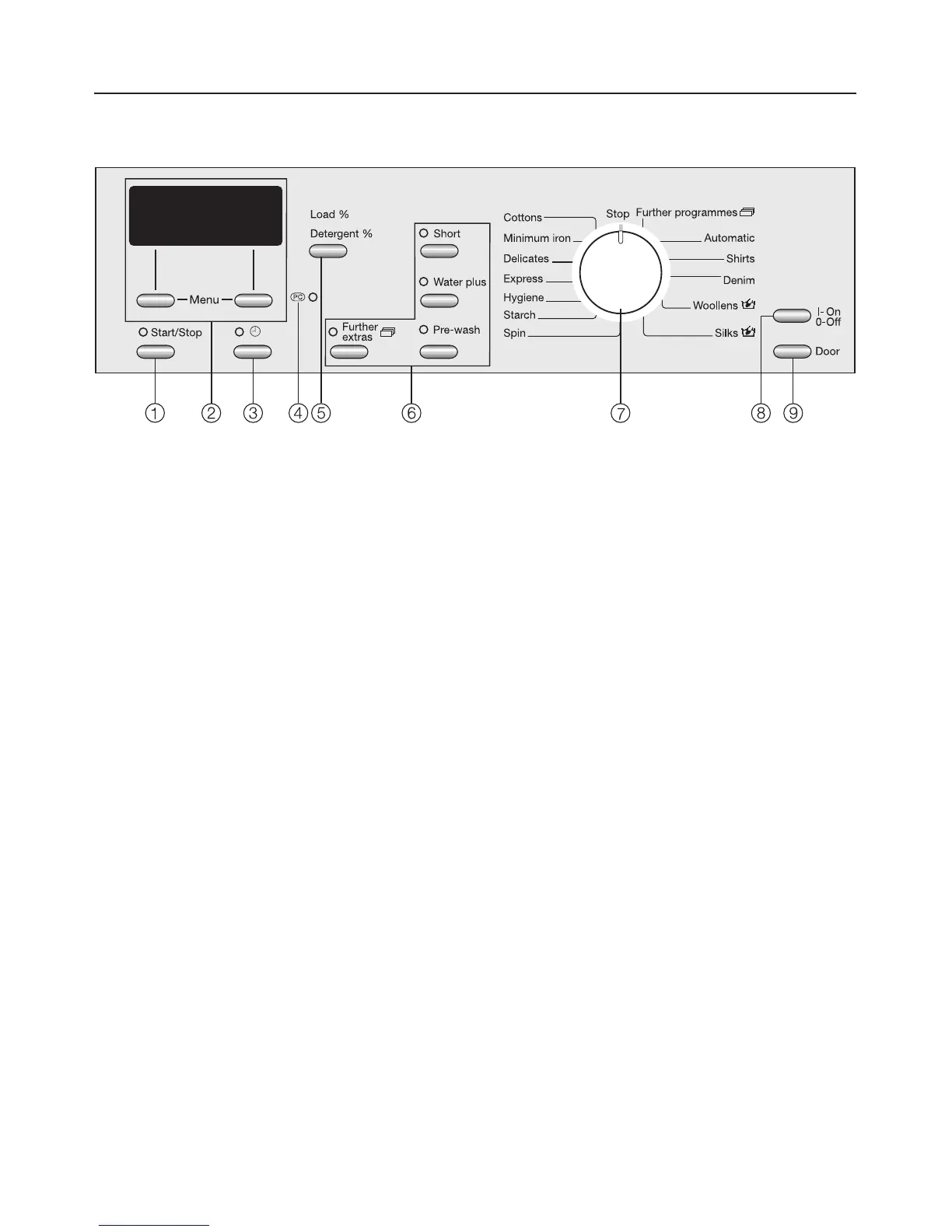

Control panel
a Start/Stop button
For starting the programme selected
and cancelling a programme once it
has started.
b Display with Menu buttons
See the next pages for more
information.
c m button
For selecting delay start.
d PC / Optical interface
This is used by service technicians
to run diagnostic checks on your
machine and can also be used to
update programming data in the
future.
e Load/Detergent button
For calling up the load size or the
recommended amount of detergent,
and for calibrating the load size
sensor to zero.
f Extra options buttons
Various extra options can be added
to the washing programmes.
g Programme selector
For selecting the wash programme
and temperature for that programme.
The programme selector can be
turned clockwise or anti-clockwise.
h I-On/0-Off button
For switching the machine on or off.
i Door button
Opens the machine door.
Operating the washing machine
10

Miele W 3923 WPS Specifications

General

Current	10 A
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Water consumption per cycle	47 L
Energy consumption washing per cycle	1.02 kWh
Annual water consumption washing	9400 L
Annual energy consumption washing	204 kWh
Loading type	Front-load
Product color	White
Built-in display	Yes
Appliance placement	Freestanding
Drum capacity	6 kg
Delay start (max)	24 h
Residual moisture	44 %
Maximum spin speed	1600 RPM
Minimum spin speed	400 RPM
Number of washing programs	18

Weight and Dimensions

Depth	580 mm
Width	595 mm
Height	850 mm
Weight	94000 g
